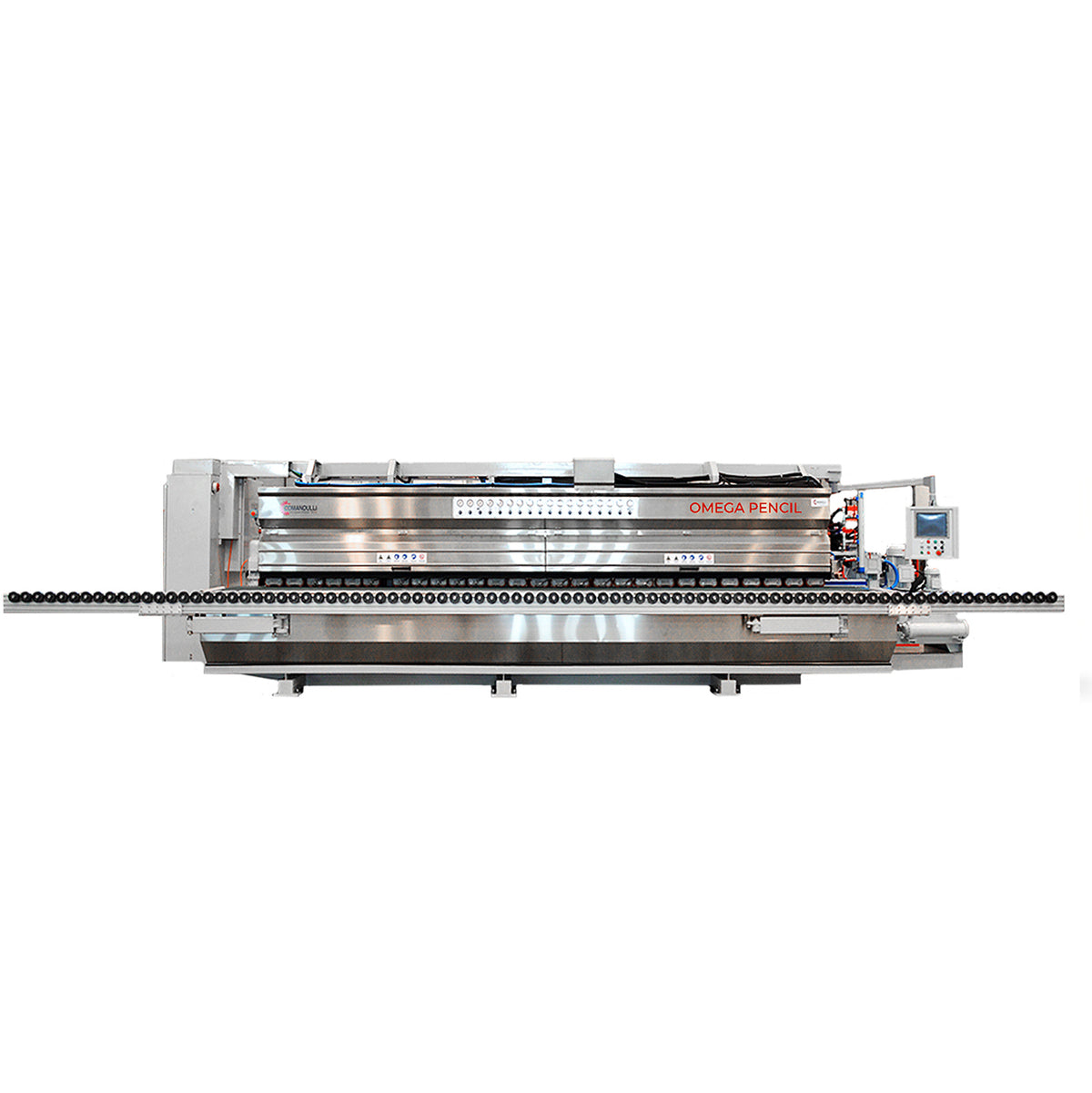

Comandulli Omega Pencil
The exclusive features of a Comandulli machine Omega Pencil System:
- Steel structure, electrowelded, fully worked by milling machine.
- All our machines are protected against corrosion through a modern treatmen that follows different phases: sandblasting, metallisation and painting The painted covers are subject to cataphoresis treatment, cartes in stainless steel.
- Possibility of polishing the edges without the contrast bar, due to the special sliding system of the conveyor belt (a set of idle rollers is under the belt, guiding it in its proper grooves. In this way, the sliding friction becomes rolling friction) and the slab locking – by pneumatic pistons.
- Oscillating operation of the edge polishing group by a lever system, original, patented, operated by hydraulic pistons electronically
- controlled. Oscillating mechanism, placed in its proper boxes, oil bath.
- Hydraulic working of the motors for the edge polishing.
- Each spindle is independent.
- Possibility of polishing straight edges on slabs of different thickness, one after the other.
- Water collection tank equipped with two lateral outlets.
- New hydraulic unit for substantial energy savings.
- Colour touch screen.
- Possibility to set the belt speed from control panel.
- New program to create and polish conic bevels.
|
Technical Information
|
|
N° 1 Rectifying spindle assembled on an horizontal axis with manual positioning. The spindle can rectify on the edge 3 mm on a maximum thickness of 4 cm.
|
|
N° 1 tilting calibrating spindle assembled on n. 2 orthogonal axes: the vertical one with automatic positioning, the horizontal one with manual positioning. The spindle is arranged to be equipped with shaped wheels to rough irregular profiles and can tilt to 45°.
|
|
Automatic pre-cutting bevelling spindles (n. 2)
|
|
Series of spindles for the edge, the first with diamond wheel generating the bullnose profile with automatic positioning (n. 6)
|
|
N°5 polishing spindles for straight edges with electrical motor in axis; power 1,1 Kw each, 900rpm each; spindles assembled on a beam with the possibility of floating during the working.
|
|
Series of bevelling spindles (n. 4)
|
|
DYNAMIC/SMART SPEED FUNCTION: machine equipped with special software that, during the automatic cycle, varies automatically the belt speed to reduce donwtimes according to the kind working and the tools to be utilised. An inverter inside the electric box allows to vary the conveyor belt speed (from 0 to 3m/1’) directly from the touch screen.
|
|
Extendible bar to support pieces of big dimensions
|
|
Rollers for material loading/unloading
|
|
Possibility to make partial workings with the calibrator or the drip unit (vertcal axis motorised and visualised on the screen)
|
|
Options
|
|
Vertical spindle to smooth the calibrated strip
|
|
Centralised automatic lubrication system
|
|
Possibility to polish slabs with minimum thickness 1 cm
|
