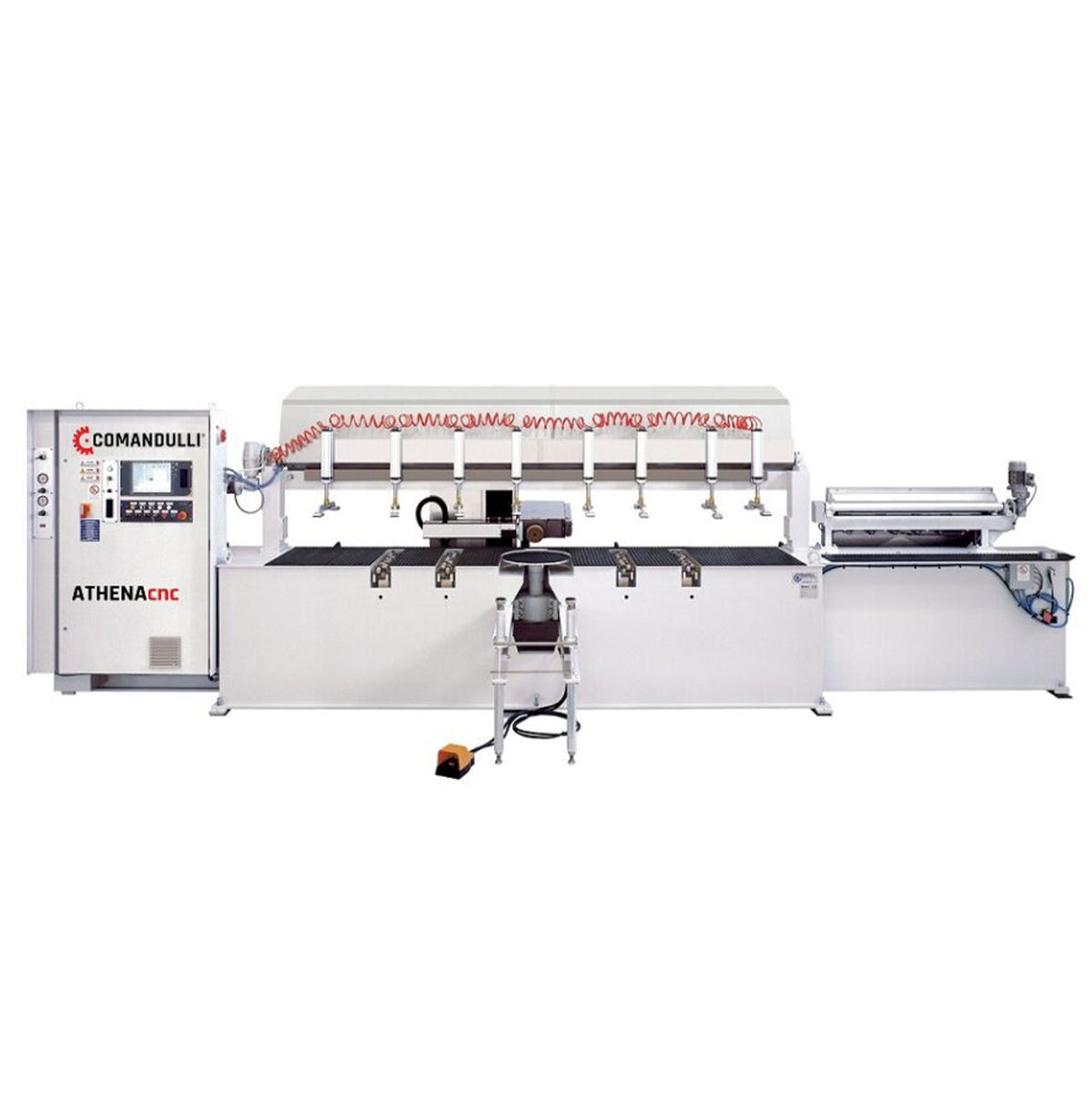

Comandulli Athena
Enquire with us for more information or to purchase
The exclusive features of a Comandulli machine Athena System:
- Monobloc machine constructed with ultimately strong and rigid chassis, produced through high-quality and high-precision mechanical systems. The retaining-spindle slide moves along the frontal side of the working surface by means of ball screws guides, managed by a brushless motor.
- Electrical tool retaining spindle (4 kW) with variable speed range from 0 to 3000 rpm, assembled on three monitored and interpolated
- axes, also managed by brushless motors. Vertical axis stroke (ball screws guides): 550 mm. Horizontal axis stroke (ball screws guides): 250 mm.
- Rotation axis stroke 180°.
- Machine frame metallised and submitted to cataphoresis treatment.
- Main covers in stainless steel.
|
Technical Information
|
|
12 positions automatic tool change
|
|
CNC control unit, together with controls visualized on touch-screen monitor
|
|
Workpiece loading system by means of a pneumatic turntable
|
|
Pneumatic holding-slab pistons
|
|
Reference squares for piece alignment
|
|
Centralised automatic lubrication
|
|
Sensor for the automatic reading of piece position
|
|
Automatic device which stops the machine in event of exhausted abrasive tools
|
|
Water circuit with sensor for automatic machine stop in case of lack of water
|
|
Software with pre-set profiles
|
|
Flexibility to program and work at the same time 5 pieces with different thickness and profile
|
|
External wire-net fencing for the operator safety
|
|
Options
|
|
Omnidirectional foldaway rollers which retract under the working surface
|
|
Possibility to equip the machine with a cutting disc to realize the groove (max. diam. 160mm)
|
|
Planetary head for straight edges
|
|
Support bar (single or double)
|
|
Support bench (single or double)
|
|
Automatic controlled turning table (PGM) to work in continous without operator all the 4 sides of the slabs
|
|
V-groove option to realise cuts at any angle on any thickness (max. diam. 230mm)
|
|
Possibility to work bevels of variable dimensions : conic bevels or sloping tombstones (en pente)
|
|
Air conditioning inside the electric box (suggested for hot weather)
|
|
Water drain system that can be automatically activated in winter season
|
|
14 positions automatic tool change
|
|
Heating system in the electric box (suggested for coold weather)
|
