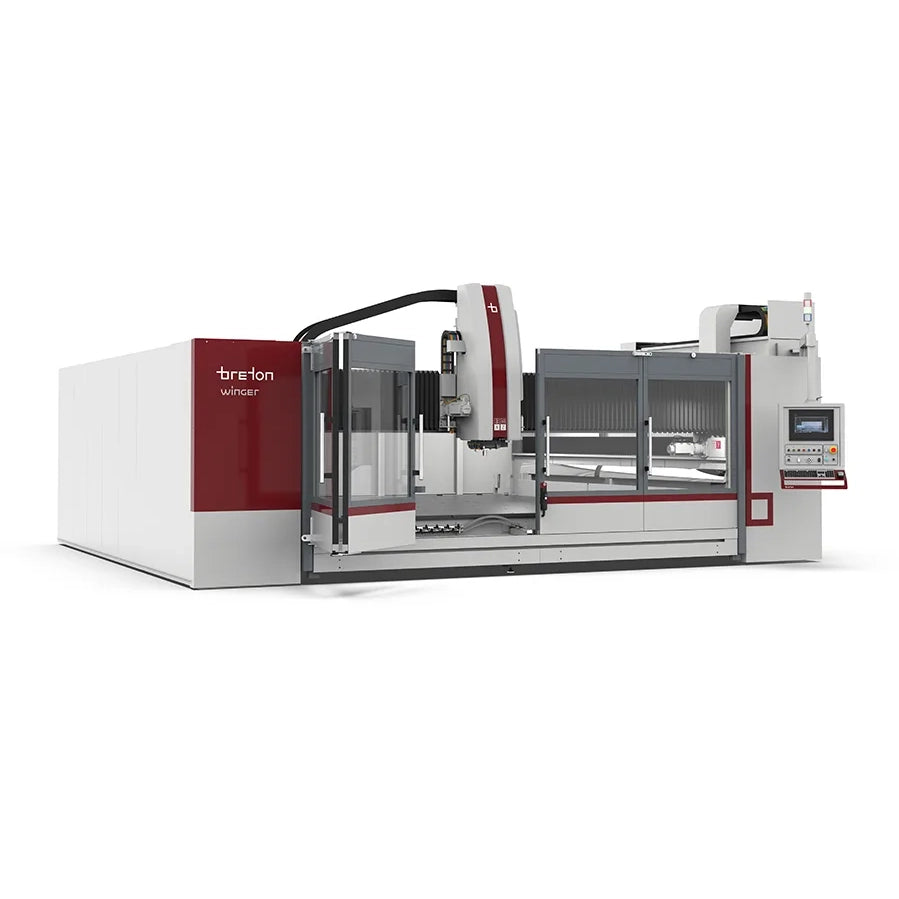

Breton Winger CNC Work Centre

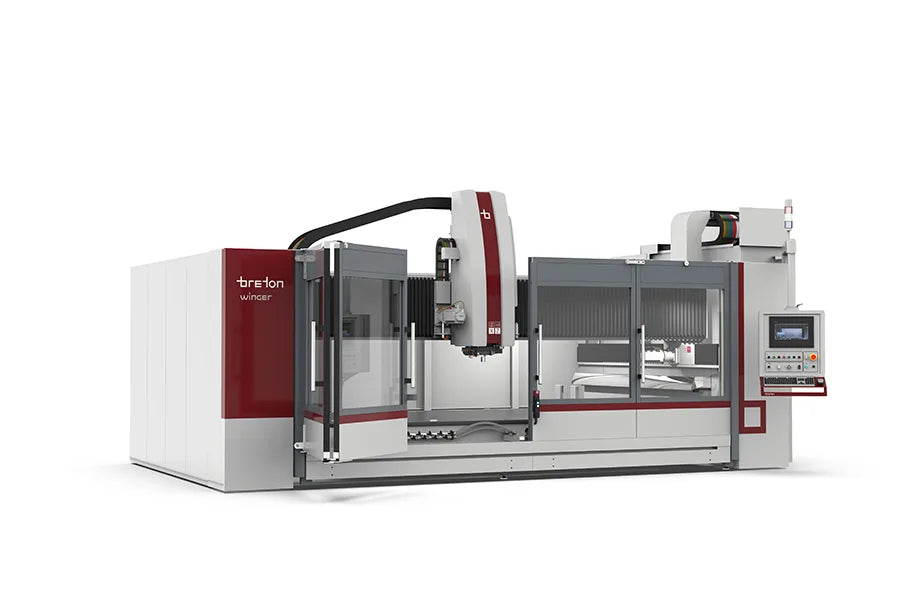

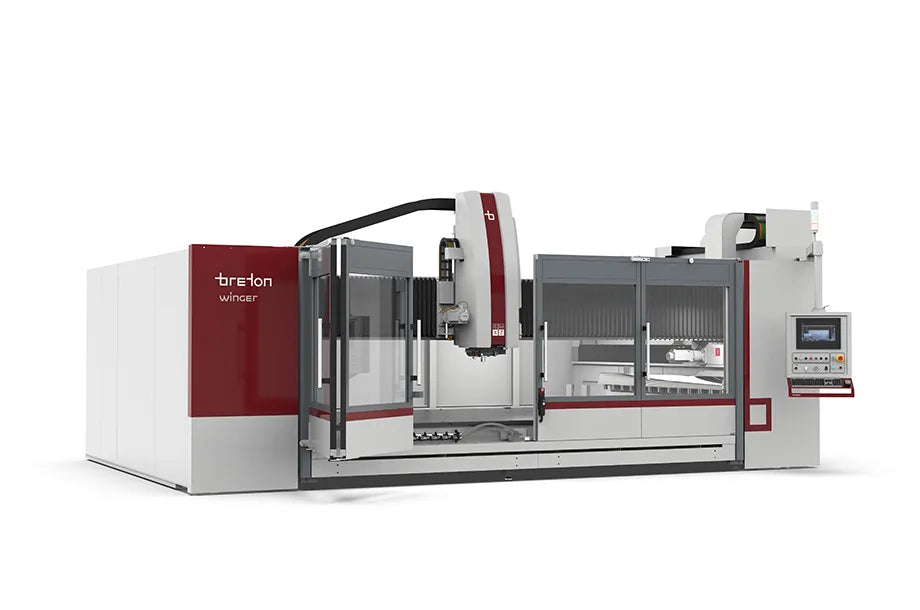

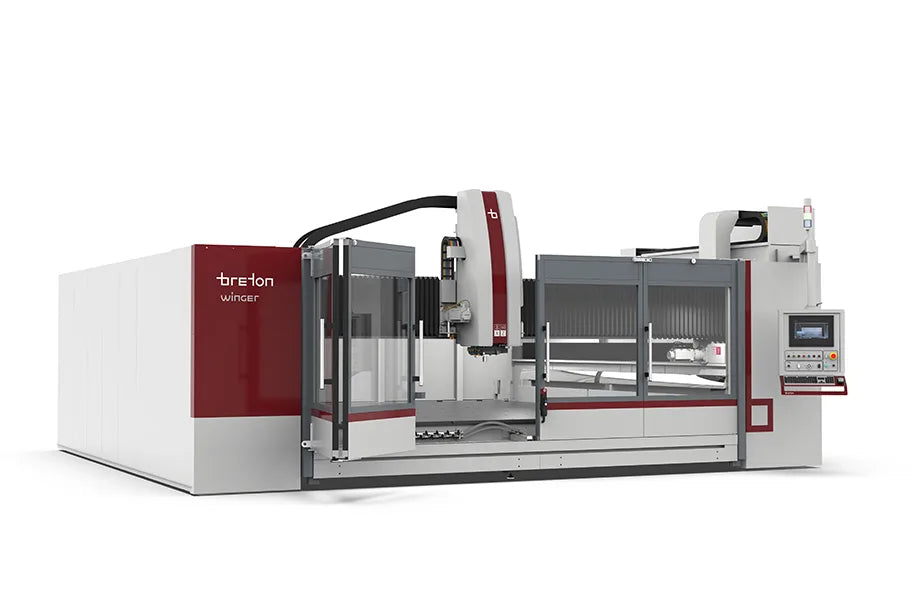

Winger K20 is the basic version able to operate on a worktop of 1.900 x 3.740mm, Winger K26 is the version with a worktop measuring 2.240 x 3.740 mm and, finally, Winger K40 offers the largest worktop with its 3.940 x 3.740 mm. The size of the worktable depends on the number of workpieces that can be loaded at a time, optimising the number of tool changes and set-up time.

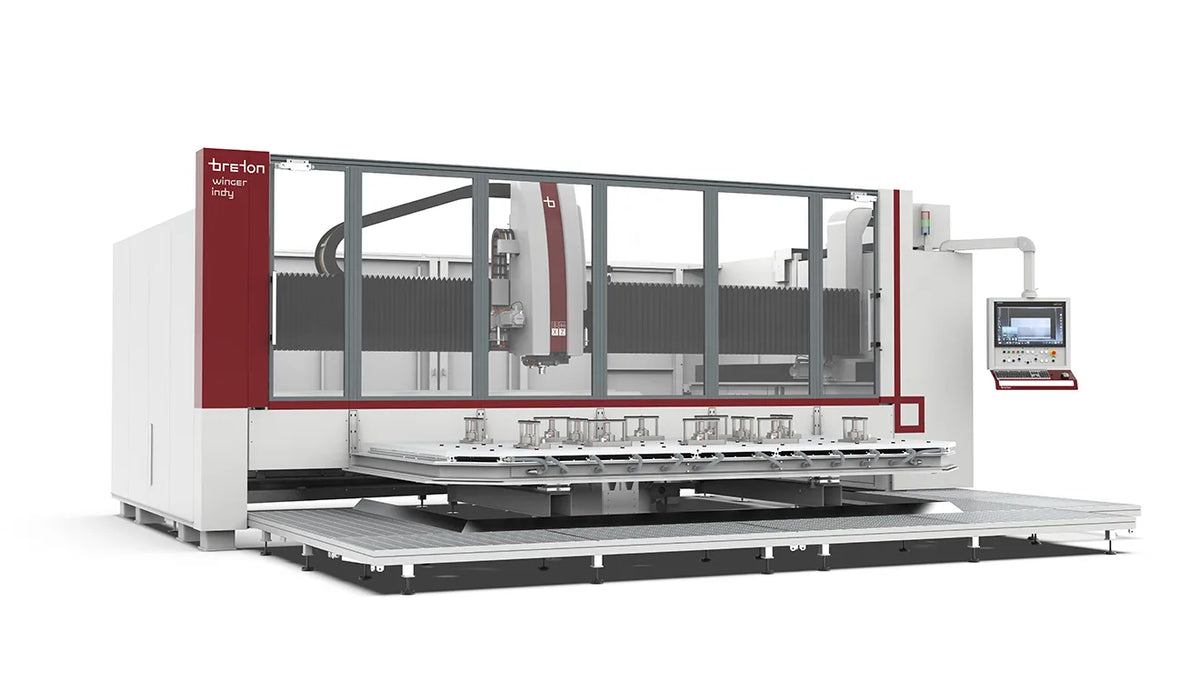

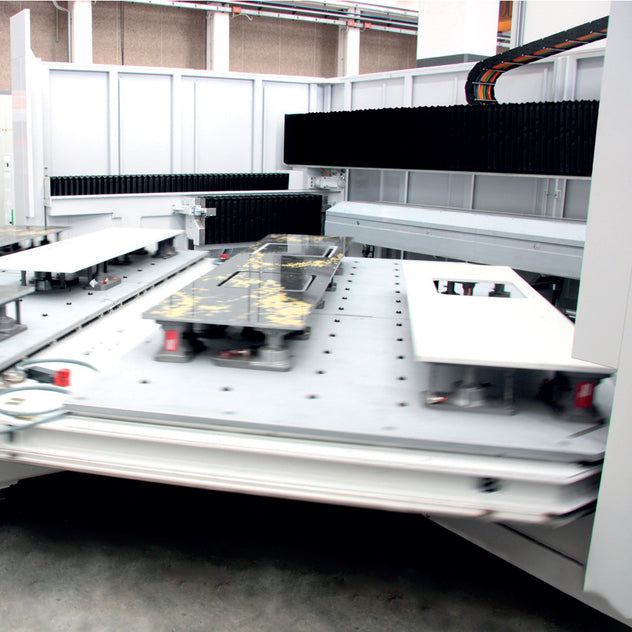

Winger is also available in high productivity versions, designed with the aim of increasing the quantity of parts produced. Winger Indy is equipped with a double rotating workbench that allows the operate to load/unload the workpieces while the machine is operating, thus reducing downtime.

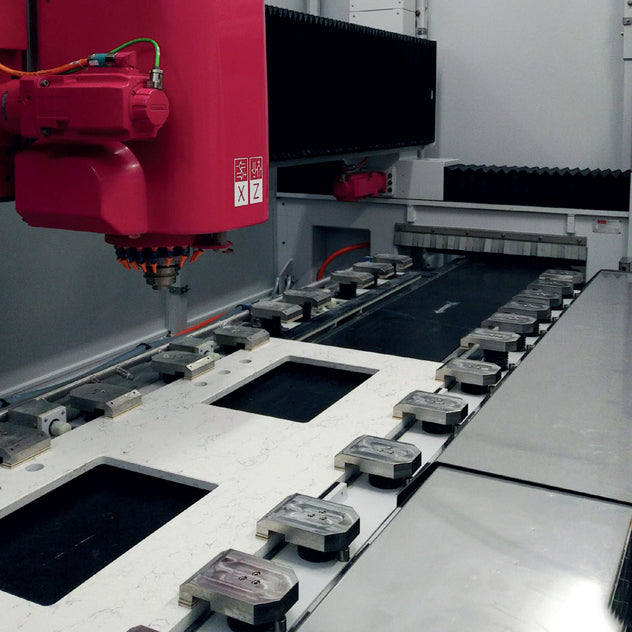

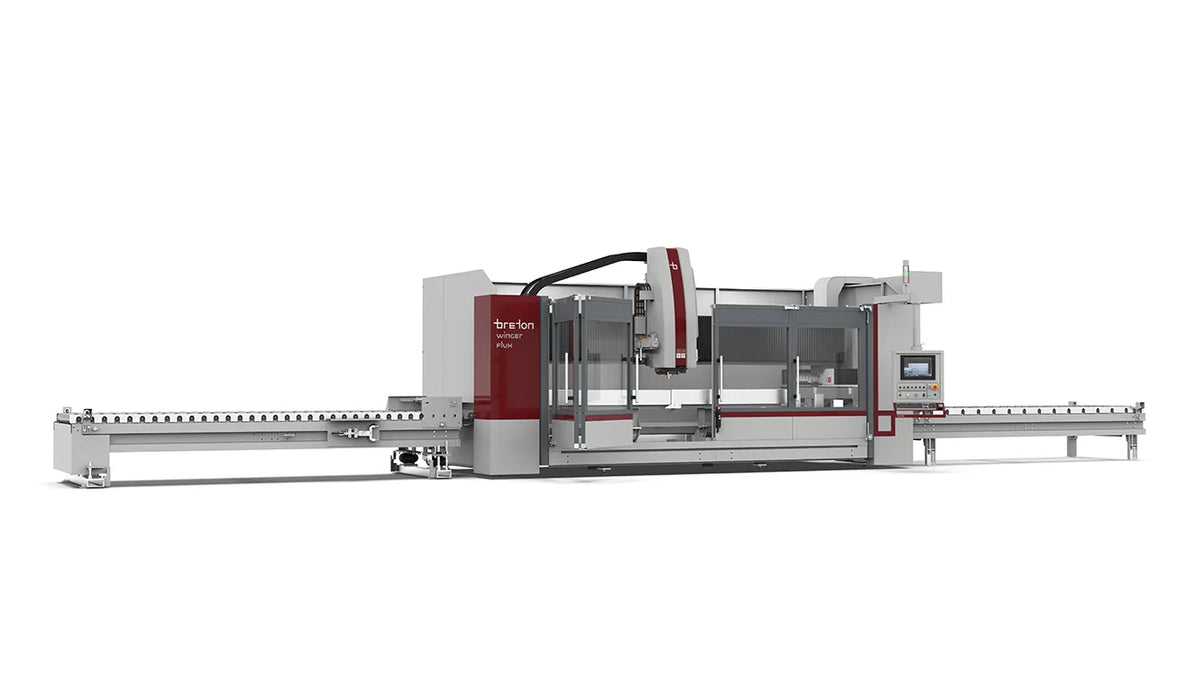

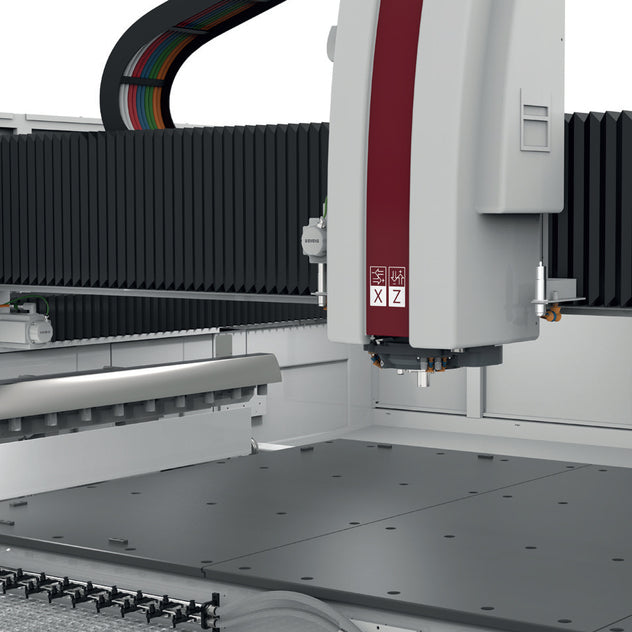

On the other hand, Winger Flux features a workpiece feeding and clamping system. The workpieces are conveyed by a belt conveyor and clamped for machining with pneumatic grippers instead of the classic vacuum cups. The machine works in total autonomy. Workpiece changeover takes less than a minute. Any unloading of waste doesn’t interrupt the machining cycle. All versions feature a powerful 15 kW spindle (S1) at 12,000 rpm as standard, providing the power and torque needed to effortlessly perform all required operations, even with tools of very small diameters.
