Breton Paragon

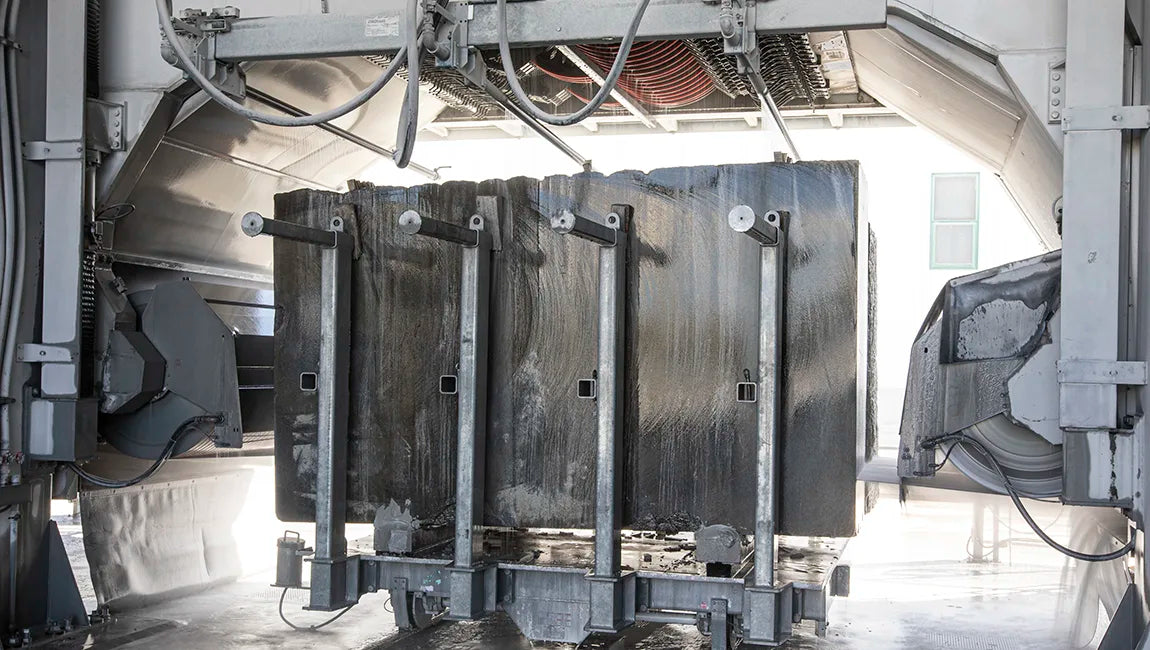

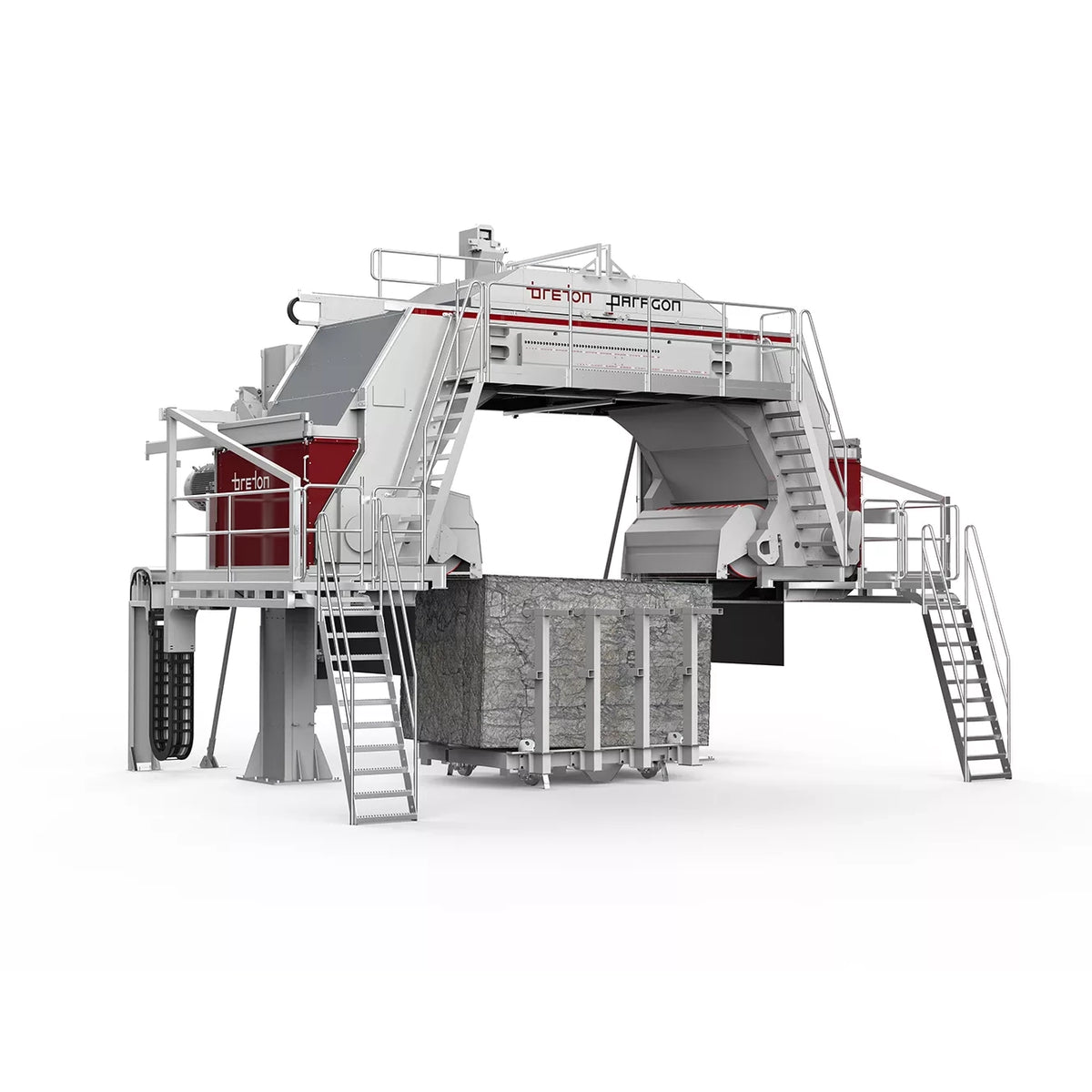

Multiwire machine for sawing stone blocks

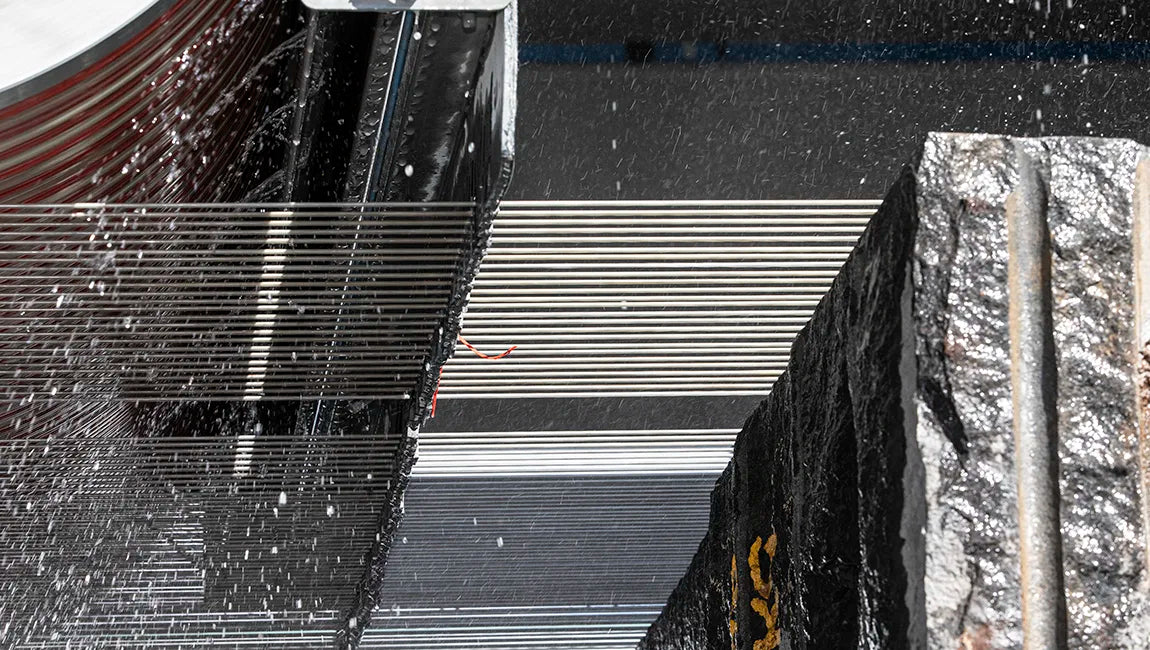

Multi diamond wire machine to saw slabs in thicknesses of 20 mm, 30 mm, or more.

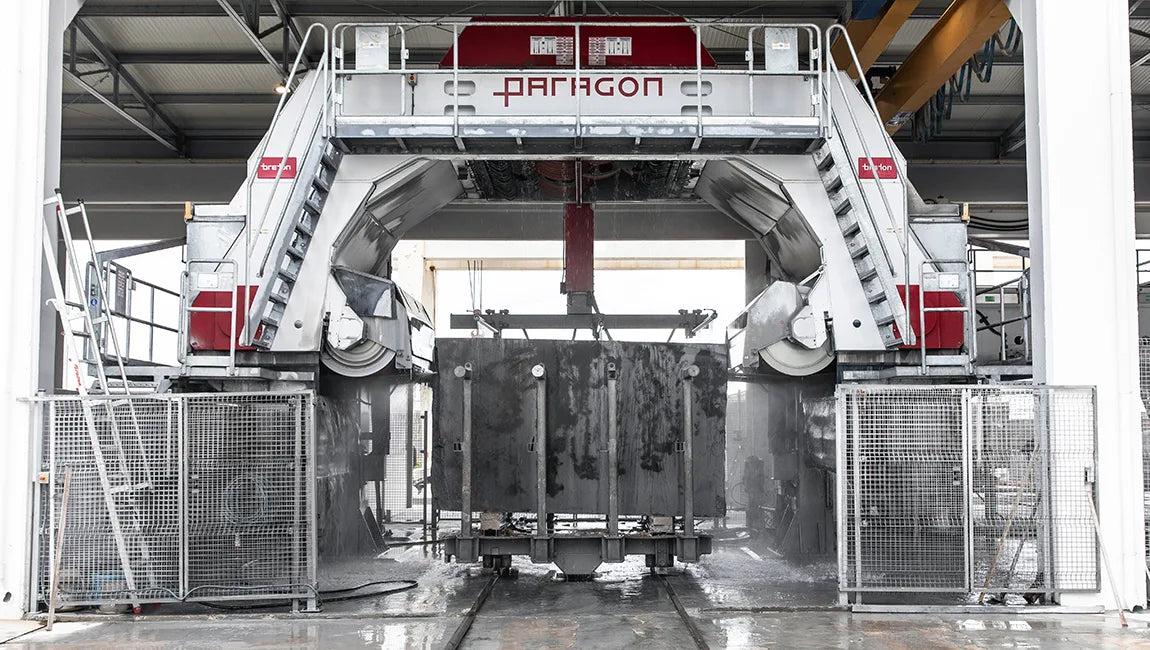

The structural robustness combined with the characteristic triangle system makes it possible to saw marble and granite blocks to make slabs of various thicknesses.

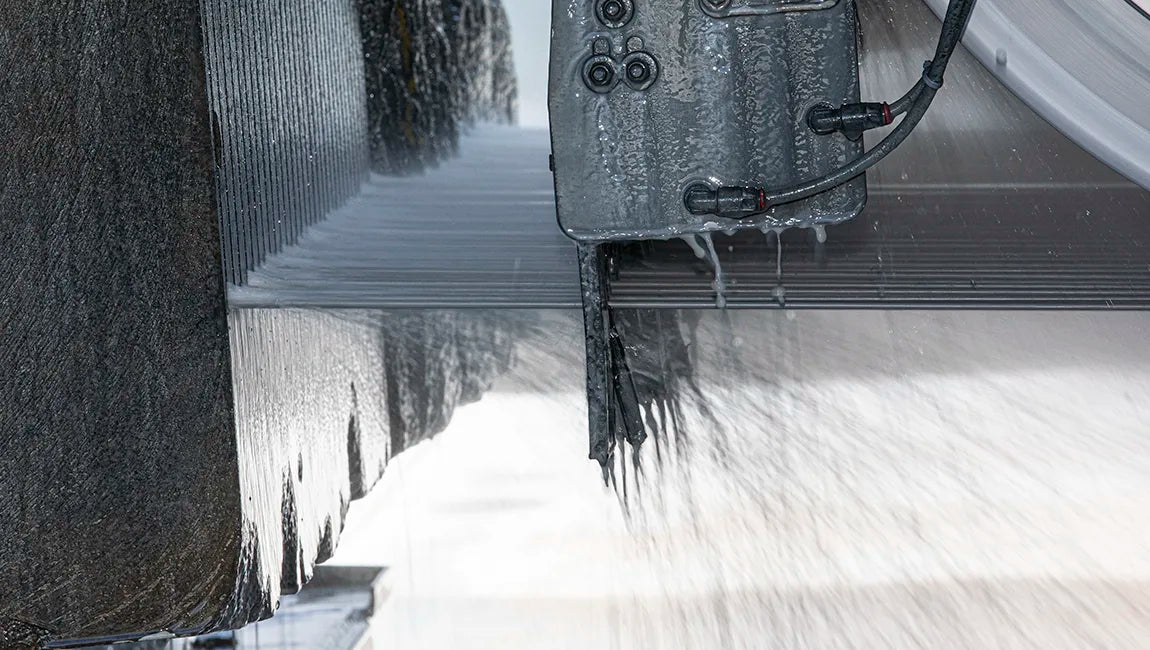

The high performance of the machine has tangible results in terms of production, wire lifetime, and maintenance of cutting positions. Also, with the “adjustable guide wheels”, also with small blocks, you can always use the machine in the best conditions in terms of the tangential direction of sawing.
Couldn't load pickup availability
Specifications
Specifications
MULTIWIRE PARAGON P 1600/6/V/59
Max. dimensions of the block (length): 3700 mm
Max. dimensions of the block (height): 2200 mm
Obtainable slab thickness for 20 mm sawing (new wire): 21 - 21 mm
Obtainable slab thickness for 30 mm sawing (new wire): 30 - 31 mm
Max. number of wires for sawing 20 mm thickness: 59
Max. number of wires for sawing 30 mm thickness: 44
Diameter of the diamond wire (new wire): 7 - 7 mm
Wire-driving groove pitch: 10 mm
Mass: 52000 kg
Overall dimensions (length): 10400 mm
Overall dimensions (width): 6800 mm
Overall dimensions (max height when starting to cut): 7600 mm
Overall dimensions (max height when finishing to cut): 6200 mm
MULTIWIRE PARAGON P 1600/5/V/60
Max. dimensions of the block (length): 3700 mm
Max. dimensions of the block (height): 2200 mm
Obtainable slab thickness for 20 mm sawing (new wire): 21 - 22 mm
Obtainable slab thickness for 30 mm sawing (new wire): 31 - 31 mm
Max. number of wires for sawing 20 mm thickness: 60
Max. number of wires for sawing 30 mm thickness: 45
Diameter of the diamond wire (new wire): 6 - 6 mm
Wire-driving groove pitch: 10 mm
Mass: 52000 kg
Overall dimensions (length): 10400 mm
Overall dimensions (width): 6800 mm
Overall dimensions (max height when starting to cut): 7600 mm
Overall dimensions (max height when finishing to cut): 6200 mm
MULTIWIRE PARAGON P 2100/6/V/76
Max. dimensions of the block (length): 3700 mm
Max. dimensions of the block (height): 2200 mm
Obtainable slab thickness for 20 mm sawing (new wire): 21 - 21 mm
Obtainable slab thickness for 30 mm sawing (new wire): 30 - 31 mm
Max. number of wires for sawing 20 mm thickness: 76
Max. number of wires for sawing 30 mm thickness: 57
Diameter of the diamond wire (new wire): 7 - 7 mm
Wire-driving groove pitch: 10 mm
Mass: 52000 kg
Overall dimensions (length): 10400 mm
Overall dimensions (width): 6800 mm
Overall dimensions (max height when starting to cut): 7600 mm
Overall dimensions (max height when finishing to cut): 6200 mm
MULTIWIRE PARAGON P 2100/5/V/78
Max. dimensions of the block (length): 3700 mm
Max. dimensions of the block (height): 2200 mm
Obtainable slab thickness for 20 mm sawing (new wire): 21 - 22 mm
Obtainable slab thickness for 30 mm sawing (new wire): 31 - 31 mm
Max. number of wires for sawing 20 mm thickness: 78
Max. number of wires for sawing 30 mm thickness: 58
Diameter of the diamond wire (new wire): 6 - 6 mm
Wire-driving groove pitch: 10 mm
Mass: 52000 kg
Overall dimensions (length): 10400 mm
Overall dimensions (width): 6800 mm
Overall dimensions (max height when starting to cut): 7600 mm
Overall dimensions (max height when finishing to cut): 6200 mm
Materials
Materials
Marble Granite
