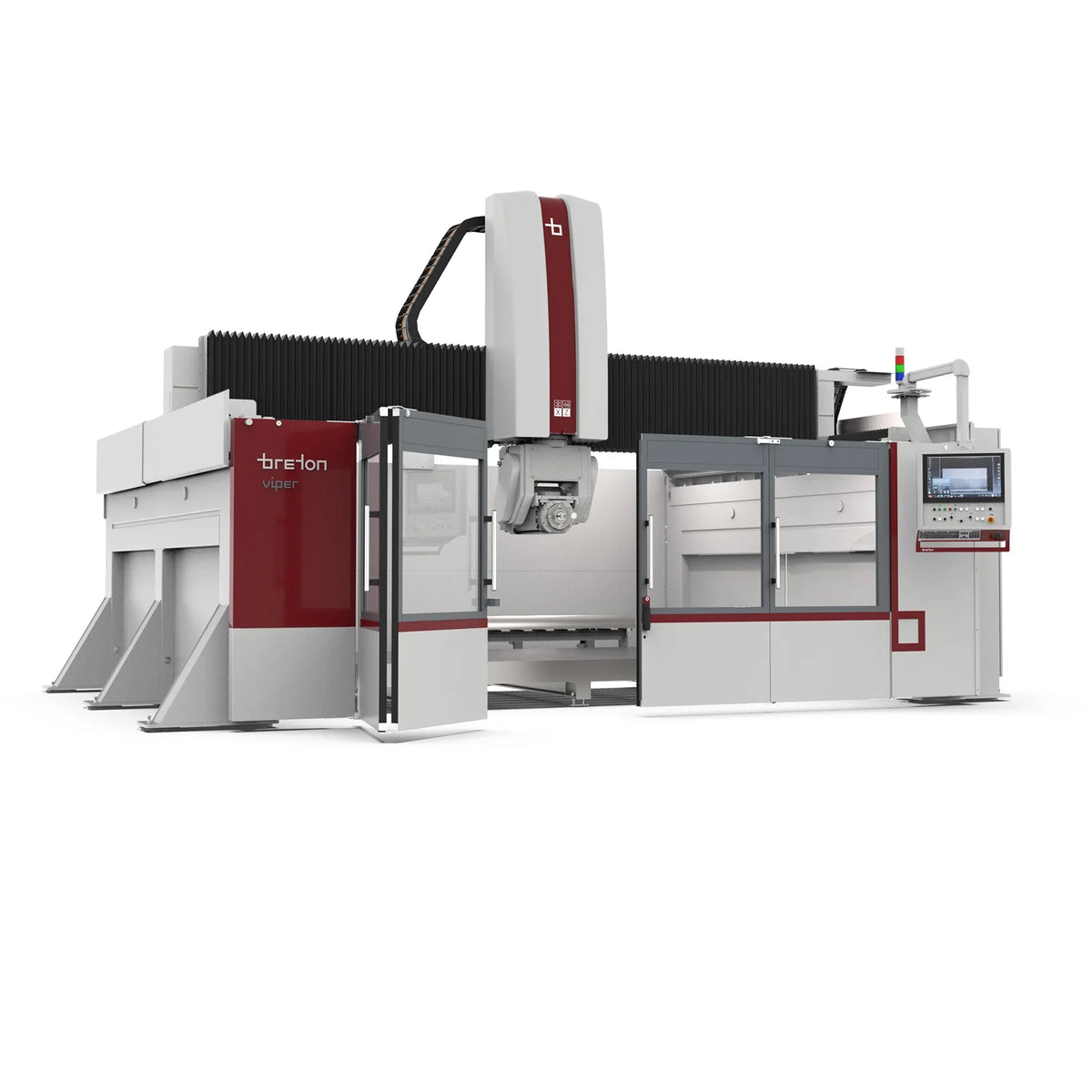

Breton Viper
5-axis CNC machining centre
Breton Viper is a numerically controlled machining centre with five interpolated axes for production of items in marble, granite, mineral surface, and stone materials in general.
Thanks to its 700/1200/1600/2000 mm vertical stroke, is ideal for architectural applications, funerary art, and deep slotting, allowing execution of complex and diversified machining processes.
Breton Viper is a machining centre that combines the robustness and thrust required for roughing operations with the dynamics and precision needed for finishing. A stable and robust base that is also extremely dynamic, configurable with a broad range of components and accessories in order to handle entire machining processes in a large number of sectors.
Viper is acclaimed for its reliability and precision, two aspects long associated with this model and that place it at the summit of the stoneworking industry in 5-axis machining work.
Couldn't load pickup availability
Specifications
Specifications
VIPER 700
Spindle motor power (in S1 duty): 24 kW
Spindle motor power (in S6 duty): 30 kW
Max. spindle rotation speed: 10000 rpm
Tool holder: ISO 40 - BLOCCAGGIO MANUALE
Max. tool diameter: 140 mm
Max. saw blade diameter: 800 mm
"X" axis travel: 3800 mm
"Y" axis travel: 3400 mm
"Z" axis travel (with "A" axis at 0°): 700 mm
"X" axis max. displacement speed: 40000 mm/min
"Y" axis max. displacement speed: 40000 mm/min
"Z" axis max. displacement speed: 10000 mm/min
"A" axis rotation: 0 - 110°
"A" axis rotation speed: 10 rpm
"C" axis rotation: 380°
"C" axis rotation speed: 10 rpm
VIPER 700 HD
Spindle motor power (in S1 duty): 22 kW
Spindle motor power (in S6 duty): 26 kW
Max. spindle rotation speed: 8000 rpm
Tool holder: ISO 50
Max. tool diameter: 140 mm
Max. saw blade diameter: 800 mm
"X" axis travel: 3800 mm
"Y" axis travel: 3400 mm
"Z" axis travel (with "A" axis at 0°): 700 mm
"X" axis max. displacement speed: 40000 mm/min
"Y" axis max. displacement speed: 40000 mm/min
"Z" axis max. displacement speed: 10000 mm/min
"A" axis rotation: 0 - 110°
"A" axis rotation speed: 10 rpm
"C" axis rotation: 380°
"C" axis rotation speed: 10 rpm
VIPER 1200
Spindle motor power (in S1 duty): 24 kW
Spindle motor power (in S6 duty): 30 kW
Max. spindle rotation speed: 10000 rpm
Tool holder: ISO 40 BLOCCAGGIO MANUALE
Max. tool diameter: 140 mm
Max. saw blade diameter: 1000 mm
"X" axis travel: 3800 mm
"Y" axis travel: 3400 mm
"Z" axis travel (with "A" axis at 0°): 1200 mm
"X" axis max. displacement speed: 40000 mm/min
"Y" axis max. displacement speed: 40000 mm/min
"Z" axis max. displacement speed: 10000 mm/min
"A" axis rotation: 0 - 110°
"A" axis rotation speed: 10 rpm
"C" axis rotation: 380°
"C" axis rotation speed: 10 rpm
Materials
Materials
Compound stone Marble Granite Ceramic
Step into the world of precision with our Breton CNC Saws & Work Centres
A hallmark of quality in the stone industry. Our product range is designed to meet the needs of both intricate design work and high-volume production, ensuring that no matter the scope of your project, you have the right machinery at your disposal. Breton's reputation for durability and advanced technology is unmatched, offering you the very best build quality in today's market. Explore our selection and find out how these state-of-the-art machines can become the cornerstone of your operation, boosting efficiency and quality in every cut you make.
Take A Closer Look

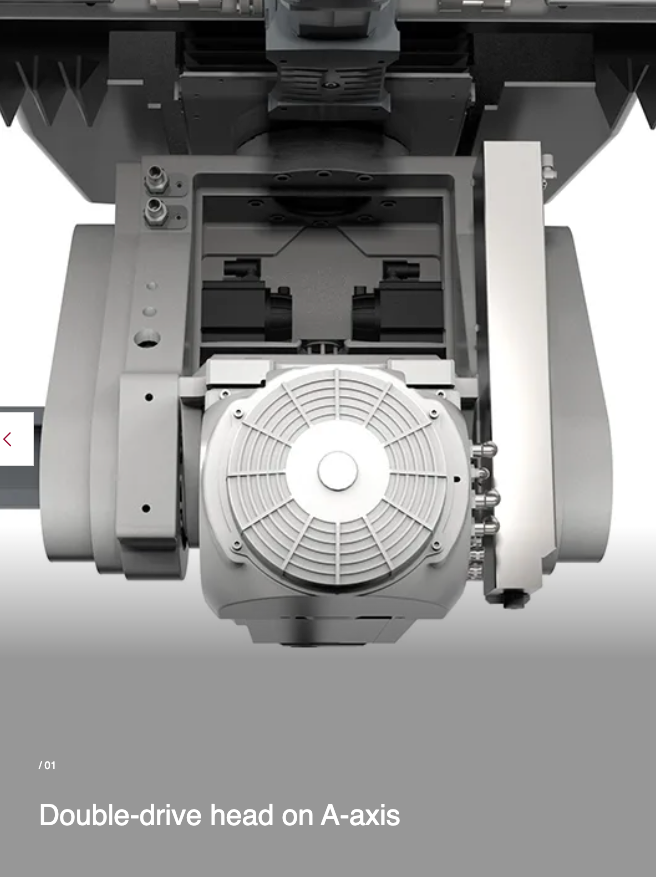

To guarantee superior rigidity and precision, Viper is equipped with a dual drive and motor system for A-axis positioning. Thanks to the brushless motors always in 'torque', backlash is eliminated and the reaction of the tool forces at work is counteracted to the maximum.

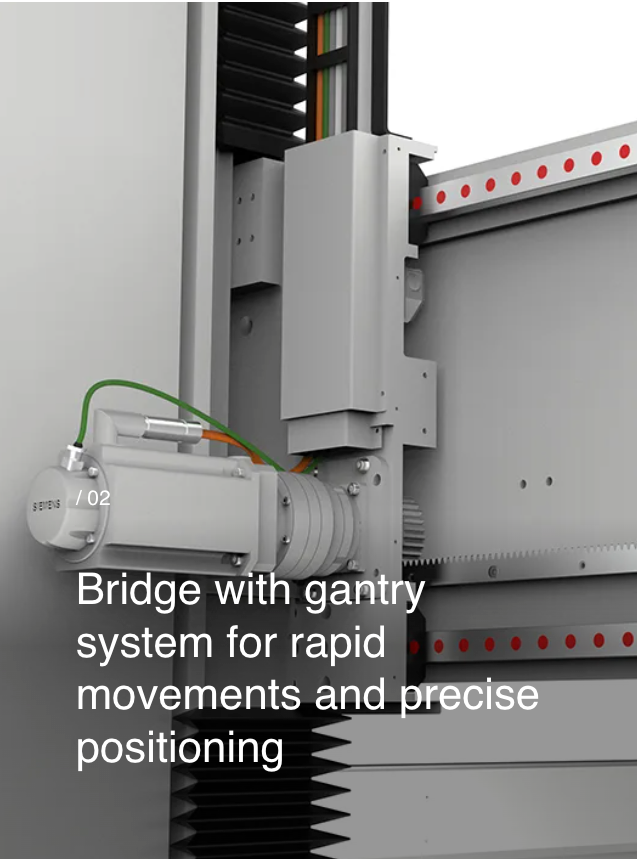

The beam is moved by a gantry system driven by a state-of-the-art Siemens brushless central motor, connected to the sprockets by a rigid axis that perfectly synchronises the two sprockets located at the most extreme sides of the beam. This makes the movements fast and precise.

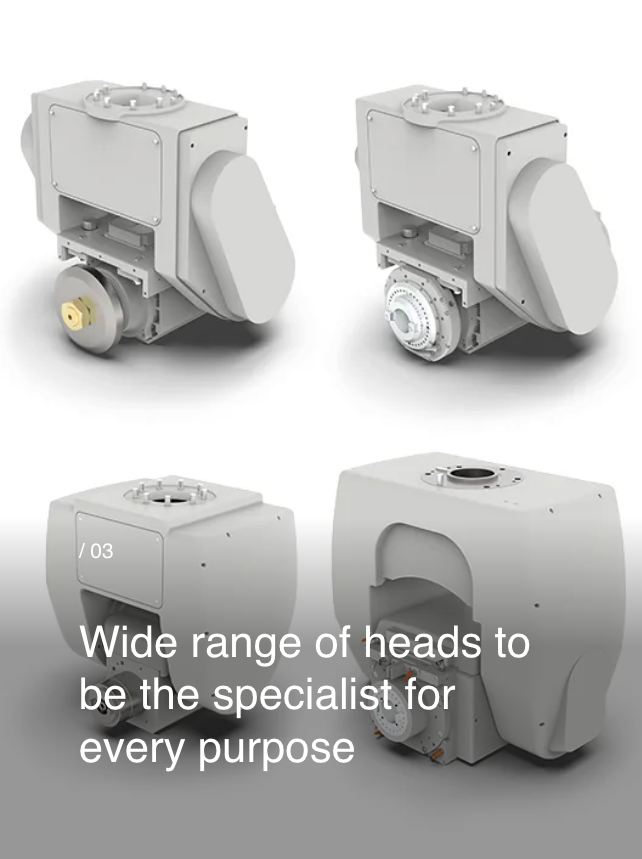

The machine can be ordered with heads and spindles with different torques, powers and revolutions from model to model.

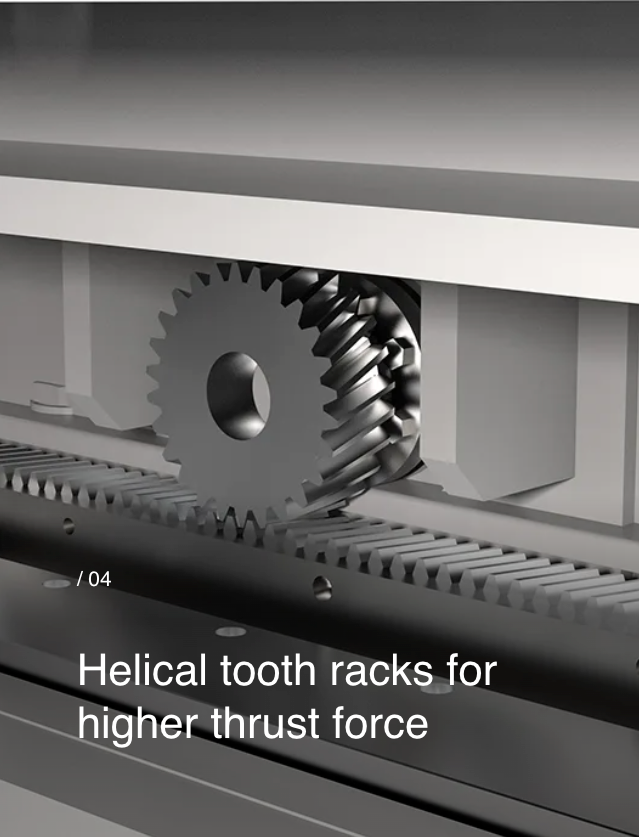

Helical tooth racks which, with respect to spur tooth racks, have higher load bearing capacity, are more durable, and reduce running noise.

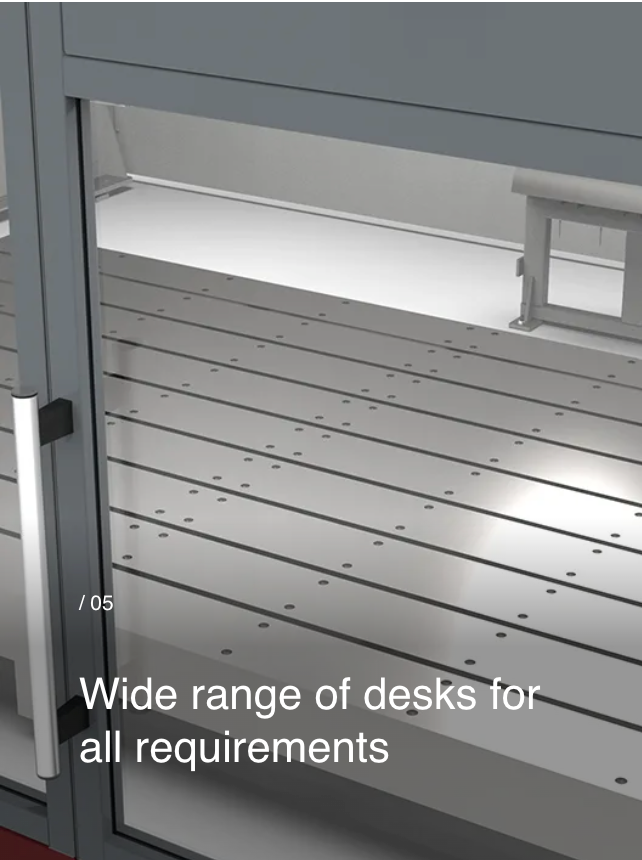

The machine can be configured according to the purpose the customer wishes to achieve: bench with wooden surface, with aluminium slats and special benches.

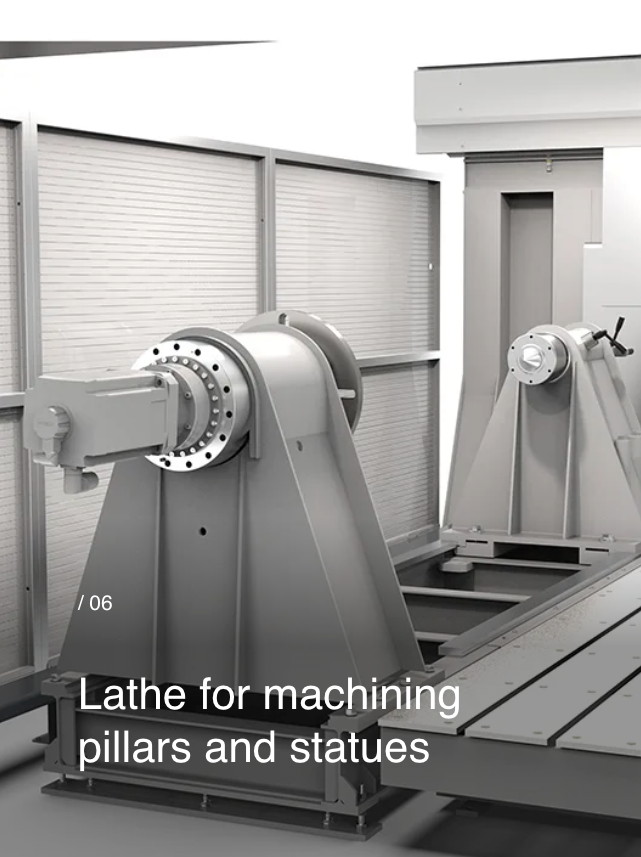

Facility to configure the machine with the 900 mm or 1600 mm diameter lathe to produce even the most complex geometries by means of an external rotation axis to which the workpiece is anchored.

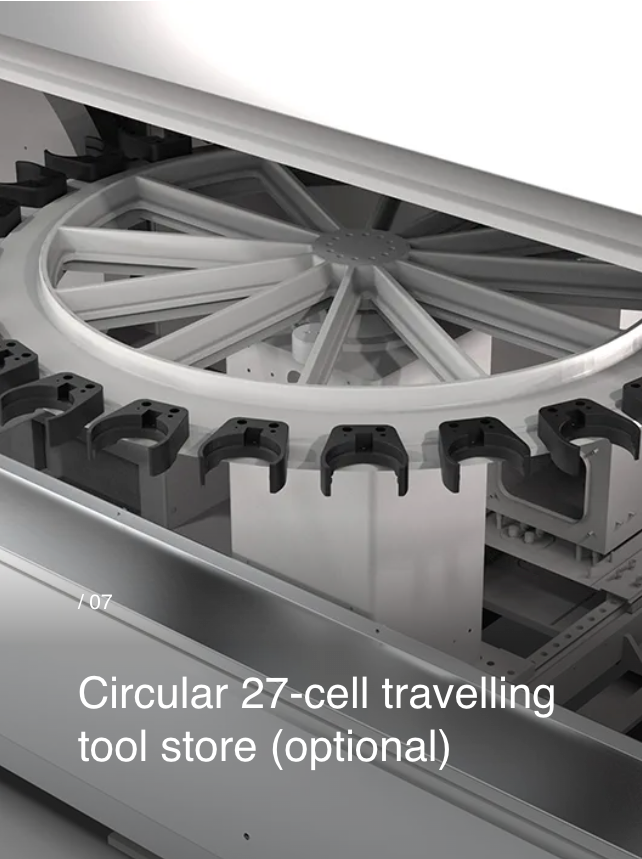

Roto-translating tool store offering constant availability of 27 cells for tool changes without reducing the work area or increasing the overall dimensions of the machine. The store also allows replacements and actions to be performed from the exterior without having to shut down the machine.

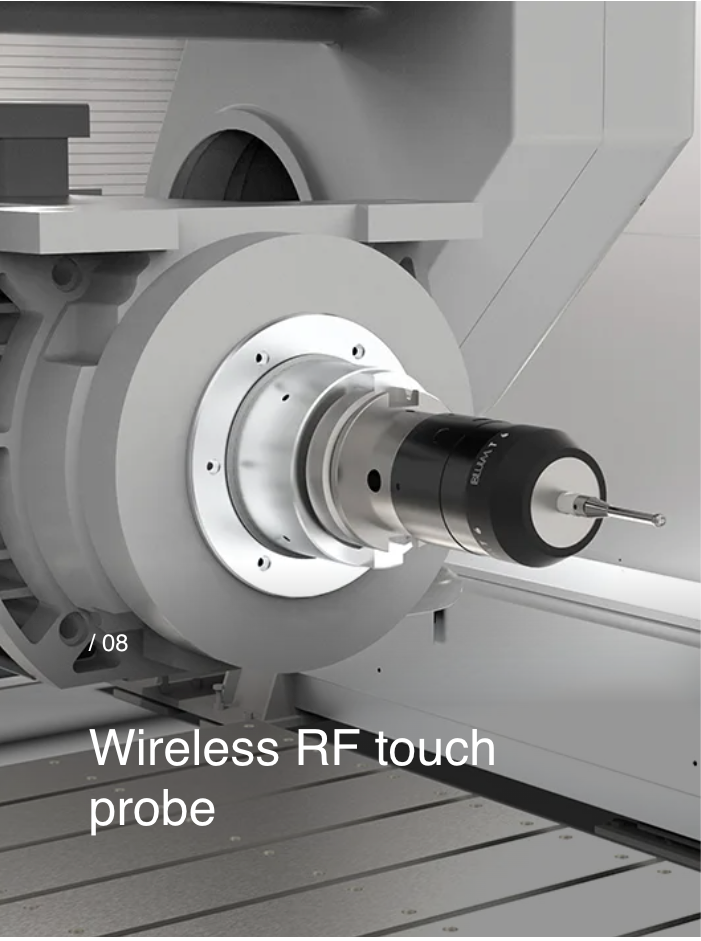

Wireless RF touch probe to detect the workpiece position in the work area. This allows the utmost positioning and clamping flexibility.

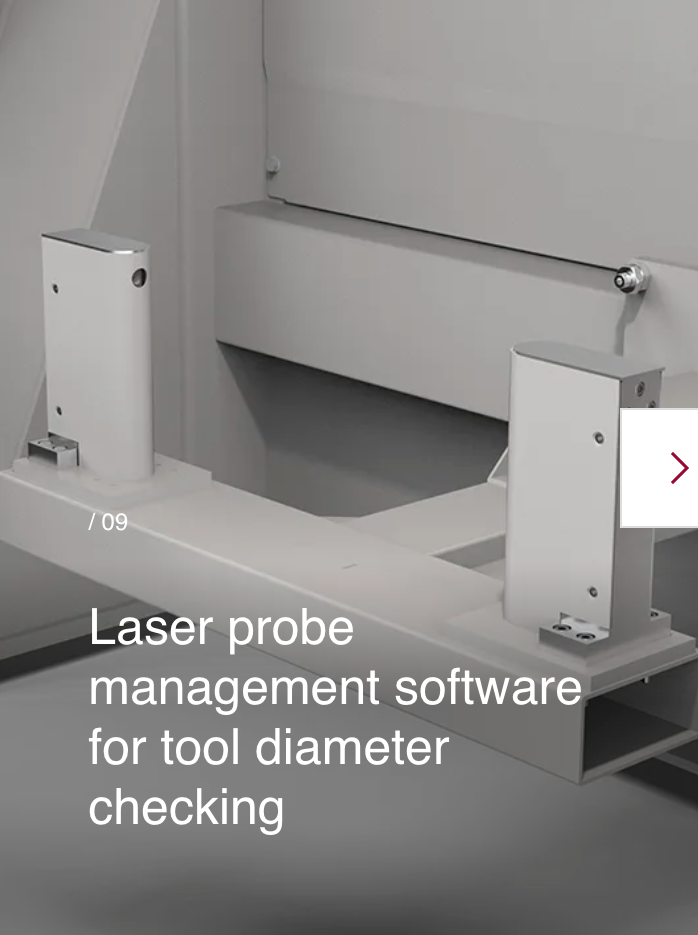

Laser probe to check tool profile, diameter and length, complete with software and mounting on one of the machine columns.
It makes it possible to check the tool condition automatically on the machine and instantly correct the CAM program in order to guarantee the best possible machining precision.
