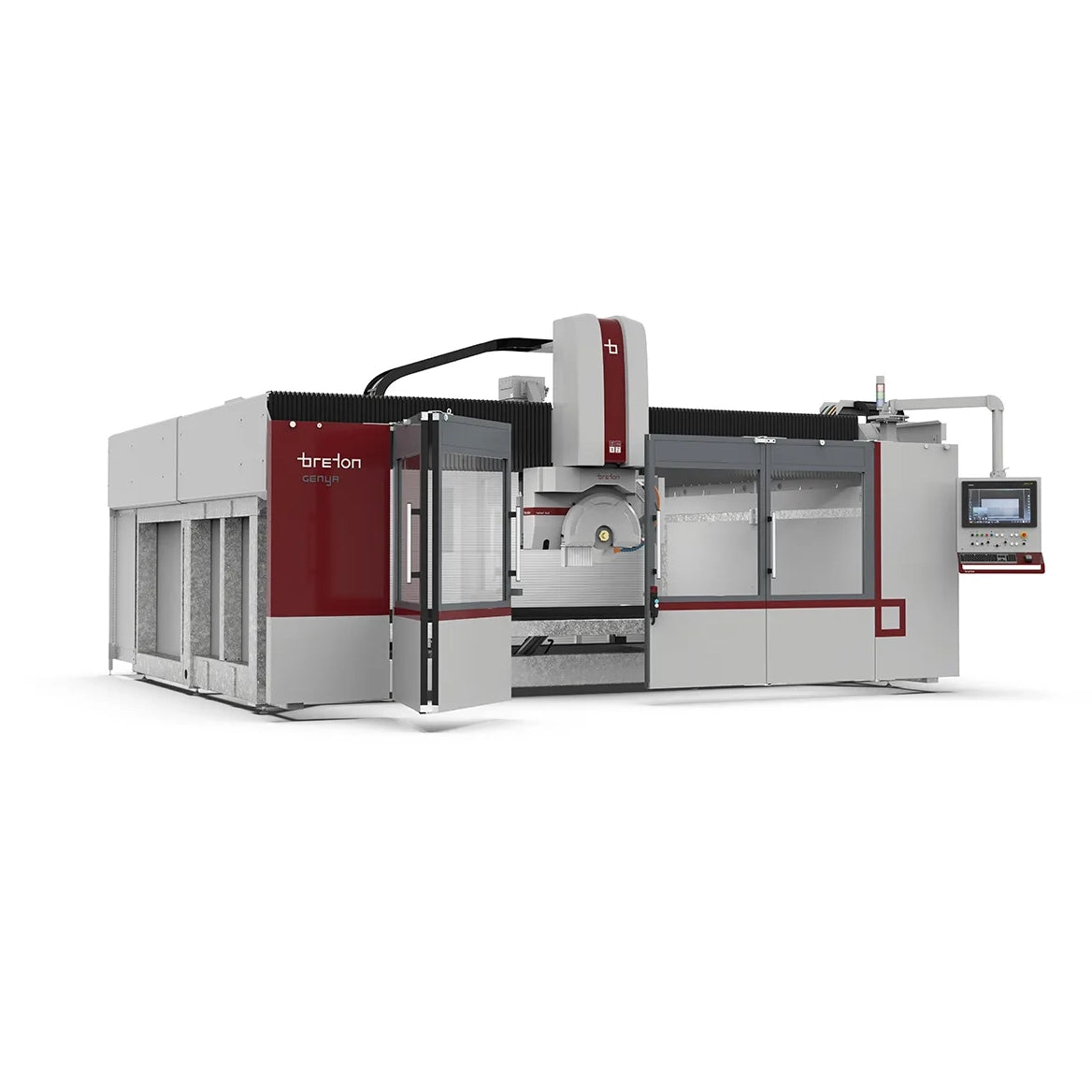

Breton Genya CNC Saw
Another core characteristic of Genya is reliability. All mechanical and electronic components are top quality, while assembly operations are carried out by Breton's expert technicians, all factors that guarantee long product life with a greatly reduced number of problems.
Couldn't load pickup availability
Specifications
Specifications
GENYA
Dimensions of the worktop (width): 2400 mm
Dimensions of the worktop (length): 3800 mm
Min. saw blade diameter: 300 mm
Max. saw blade diameter: 600 mm
Max. cutting thickness (with Ø 600 mm saw blade): 185 mm
"X" axis travel: 3800 mm
"X" axis max. displacement speed: 45000 mm/min
"Y" axis travel: 2750 mm
"Y" axis max. displacement speed: 45000 mm/min
"Z" axis travel: 500 mm
"Z" axis max. displacement speed: 15000 mm/min
"C" axis rotation: 380°
"A" axis rotation: 0 - 90°
Spindle motor power (in S1 duty): 18 kW
Spindle motor power (in S6 duty): 22 kW
Mass: 6500 kg
Overall dimensions (length): 5200 mm
Overall dimensions (width): 6450 mm
Overall dimensions (height): 3050 mm
GENYA SWITCH
Dimensions of the worktop (width): 2400 mm
Dimensions of the worktop (length): 3800 mm
Min. saw blade diameter: 300 mm
Max. saw blade diameter: 600 mm
Max. cutting thickness (with Ø 600 mm saw blade): 185 mm
"X" axis travel: 3800 mm
"X" axis max. displacement speed: 45000 mm/min
"Y" axis travel: 2750 mm
"Y" axis max. displacement speed: 45000 mm/min
"Z" axis travel: 500 mm
"Z" axis max. displacement speed: 15000 mm/min
"C" axis rotation: 380°
"A" axis rotation: 0 - 90°
Spindle motor power (in S1 duty): 18 kW
Spindle motor power (in S6 duty): 22 kW
Mass: 7500 kg
Overall dimensions (length): 16000 mm
Overall dimensions (width): 5600 mm
Overall dimensions (height): 3120 mm
GENYA FLUX
Dimensions of the worktop (width): 2400 mm
Dimensions of the worktop (length): 4000 mm
Min. saw blade diameter: 300 mm
Max. saw blade diameter: 600 mm
Max. cutting thickness (with Ø 600 mm saw blade): 185 mm
"X" axis travel: 3800 mm
"X" axis max. displacement speed: 45000 mm/min
"Y" axis travel: 2750 mm
"Y" axis max. displacement speed: 45000 mm/min
"Z" axis travel: 500 mm
"Z" axis max. displacement speed: 15000 mm/min
"C" axis rotation: 380°
"A" axis rotation: 0 - 90°
Spindle motor power (in S1 duty): 18 kW
Spindle motor power (in S6 duty): 22 kW
Mass: 9500 kg
Overall dimensions (length): 6150 mm
Overall dimensions (width): 7200 mm
Overall dimensions (height): 3050 mm
Materials
Materials
Compound stone Marble Granite Ceramic Quartzite
Step into the world of precision with our Breton CNC Saws & Work Centres
A hallmark of quality in the stone industry. Our product range is designed to meet the needs of both intricate design work and high-volume production, ensuring that no matter the scope of your project, you have the right machinery at your disposal. Breton's reputation for durability and advanced technology is unmatched, offering you the very best build quality in today's market. Explore our selection and find out how these state-of-the-art machines can become the cornerstone of your operation, boosting efficiency and quality in every cut you make.
Take A Closer Look

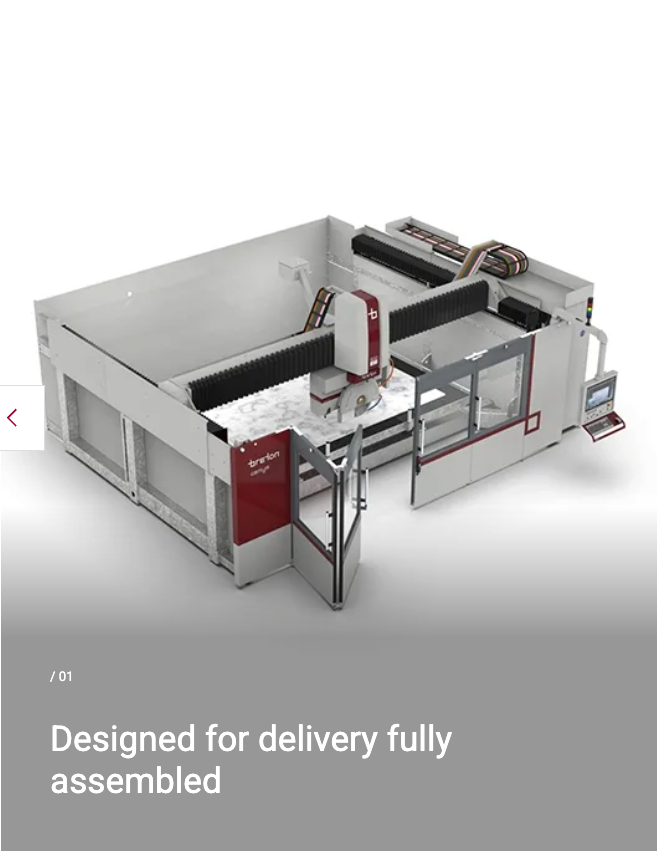

Genya is delivered pre-assembled with prewired electrical cabinet. Once the customer has positioned the machine, only the front housings remain to be fitted. The entire assembly and start-up phase can be completed in 5 days. Genya can be easily relocated on the customer's site to accommodate possible changes to the production layout.
Supplied as standard, it ensures fast, high-quality cutting at pressures up to 3,800 bar / 60,000 psi. The system reduces abrasive consumption, provides reliable performance even under heavy-duty conditions, and streamlines maintenance, helping to optimize operating costs and overall productivity.

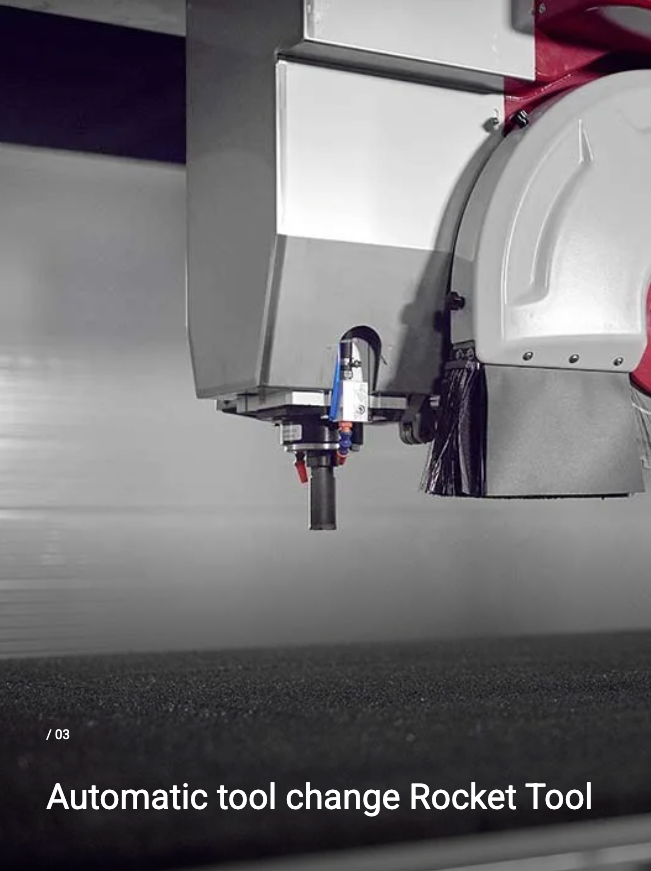

With traditional systems, tool changes must be managed manually by an operator. The new automatic tool change system for Rocket Tool ISO 30 delivers a fully automated workflow through a 12-position tool magazine.
This innovative accessory redefines slab surface processing: engravings, holes, recesses, flush-mount sink cutouts, grooves, and mixer or sink holes become even more efficient.
The bridge is moved by a rack and pinion gantry system driven by Siemens brushless motors of the latest generation in order to guarantee rapid and high precision movements.

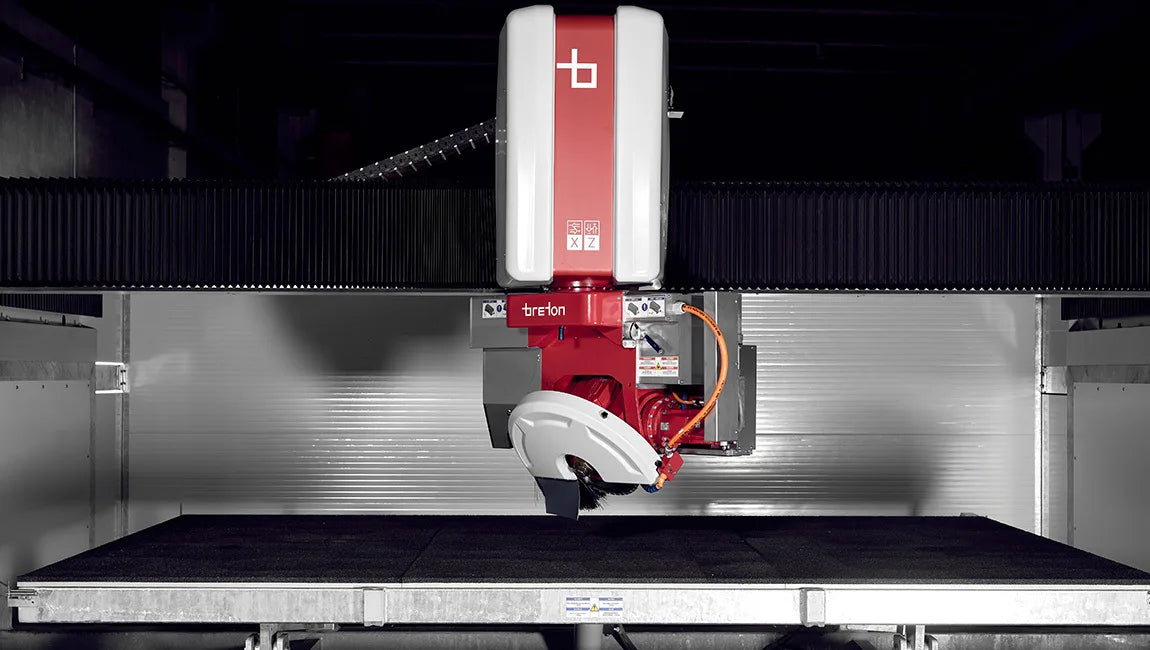

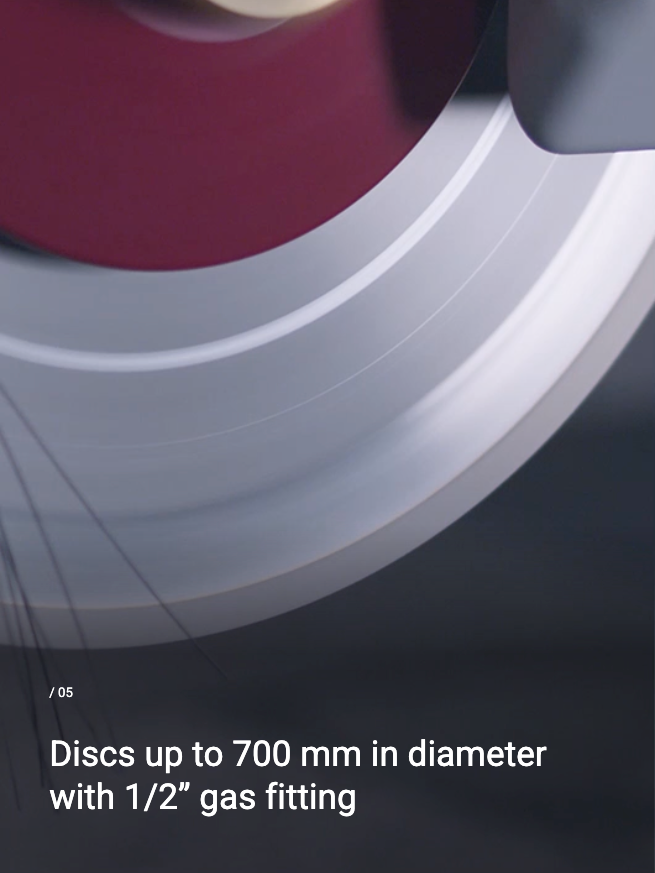

Main spindle compatible with discs of up to 700 mm with 1/2” gas fitting and internal water feed in order to fit core drill bits or end cutters.

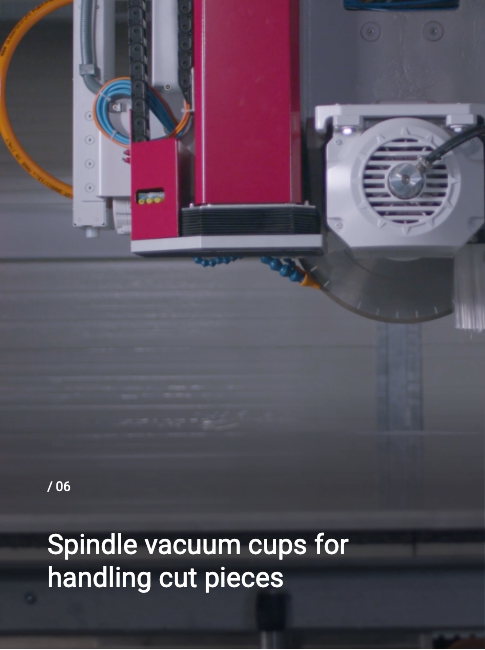

Spindle vacuum cups for handling cut pieces, making it possible to minimise material wastage and streamline cutting operations.

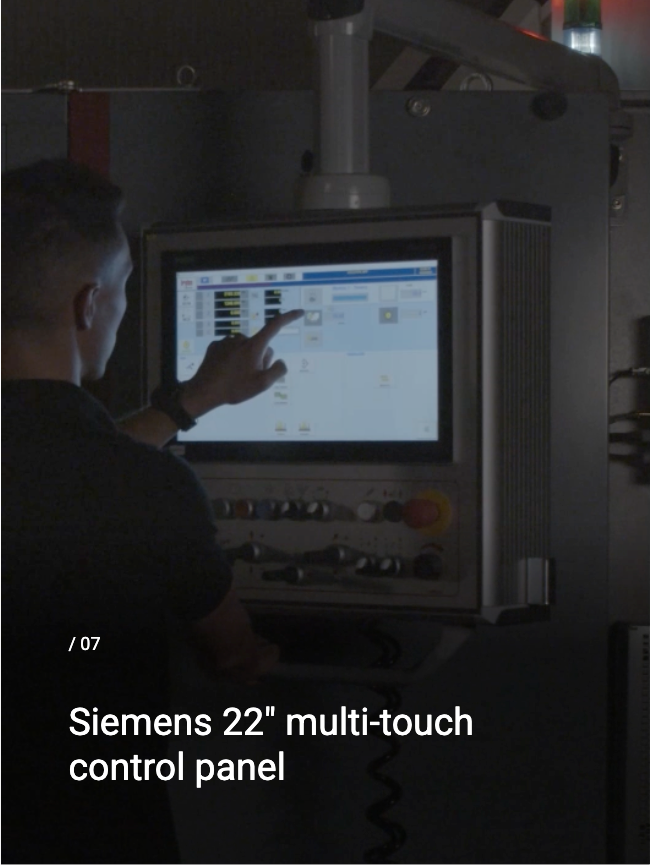

The adjustable console equipped with a Siemens terminal with 22" multi-touch screen allows the operator to program the machine easily and quickly. In addition to the system's high power, use of Siemens components means being able to rely on ongoing system developments and updates plus constant availability of spare parts, anywhere in the world.

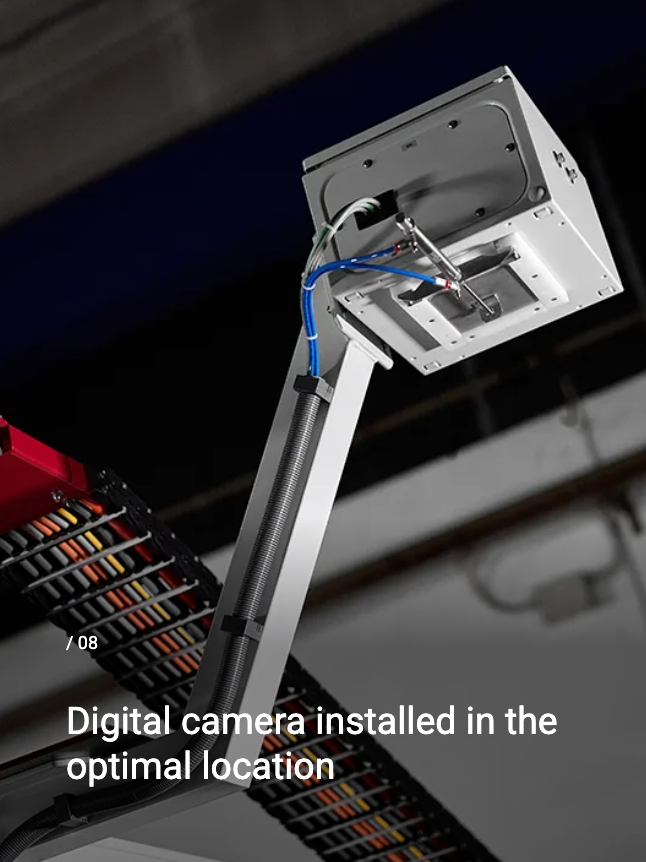

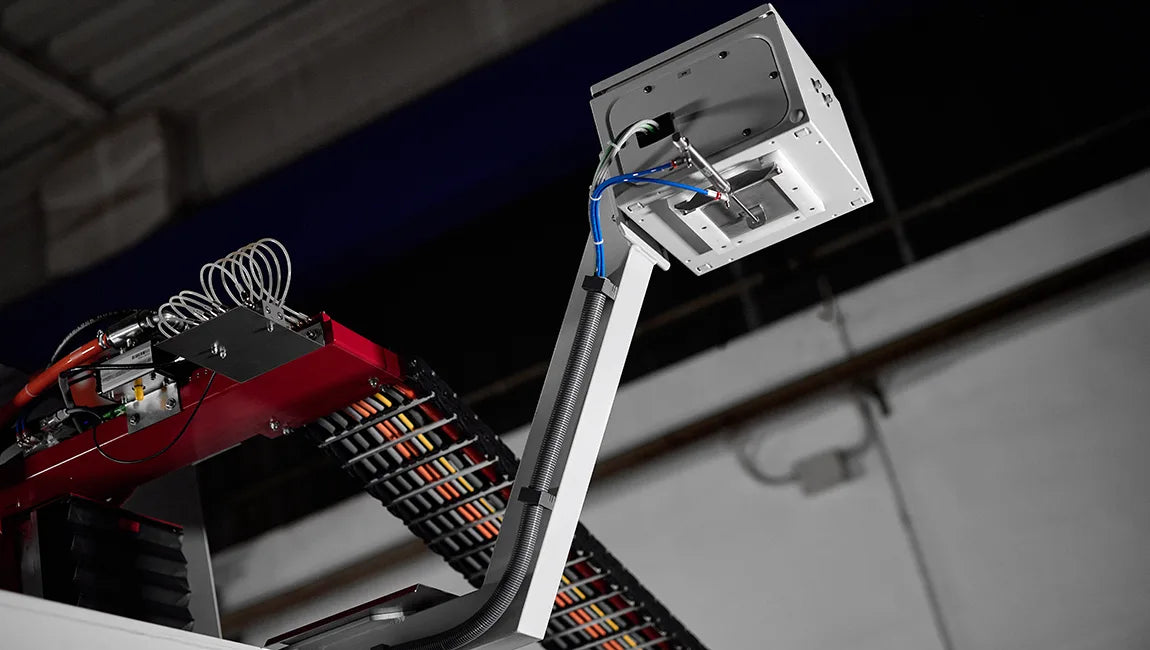

OSOB digital camera installed on the bridge perfectly perpendicular to the work table in order to take high quality photographs of the slab and optimise cuts.

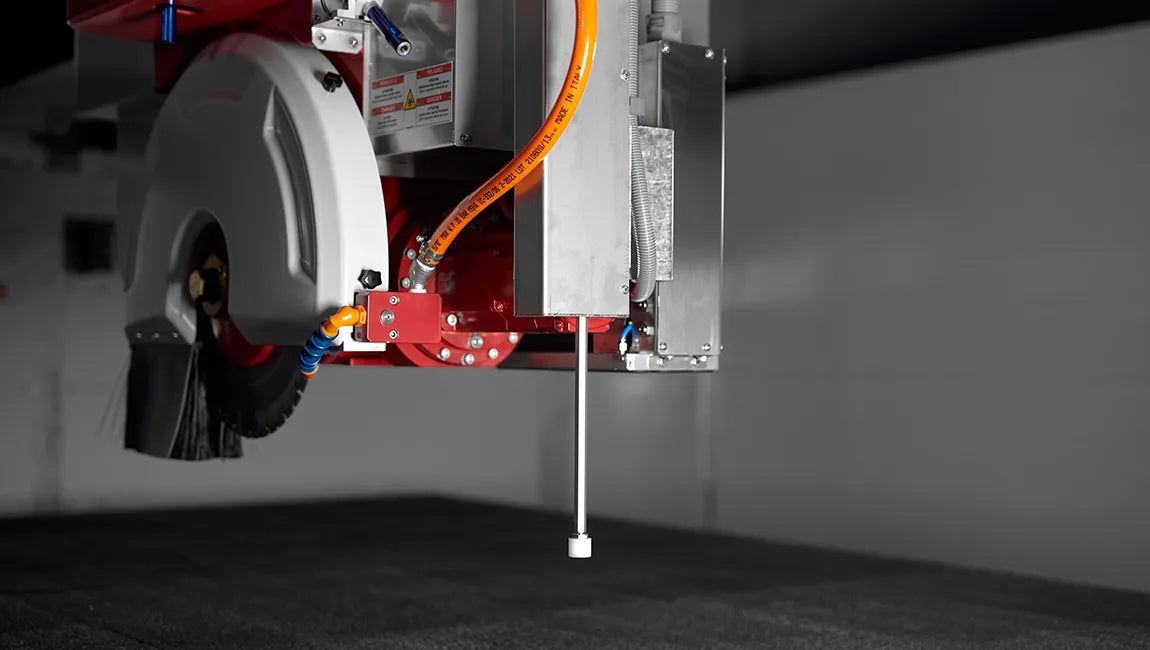

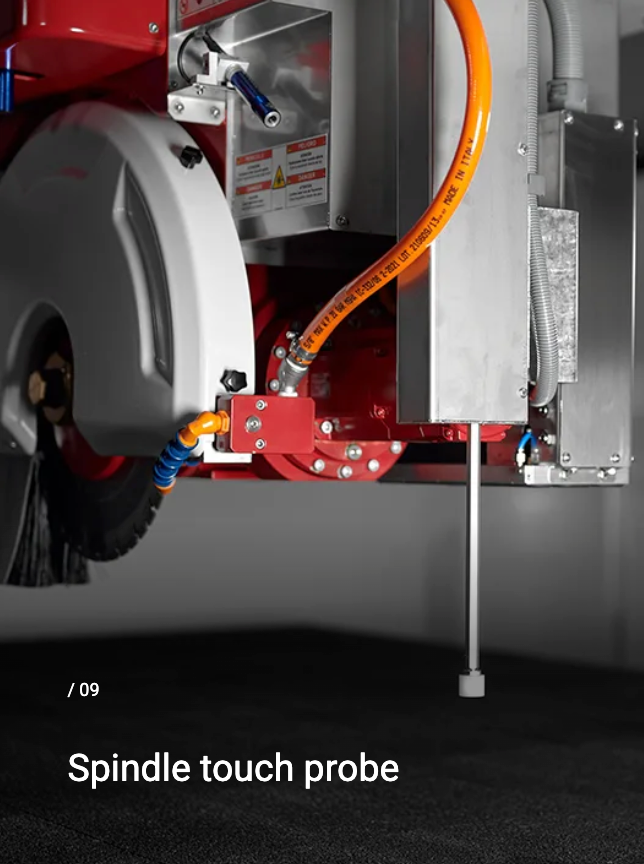

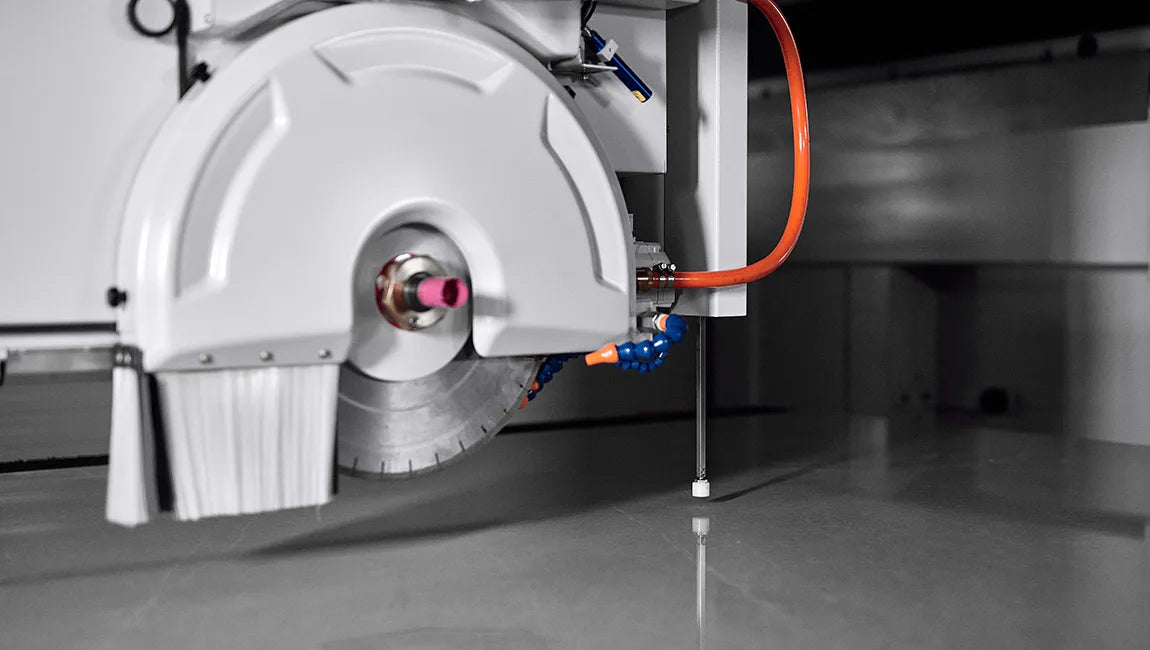

Spindle touch probe to detect slab thickness in order to start the cut at the optimal height for reduced machining cycle times.

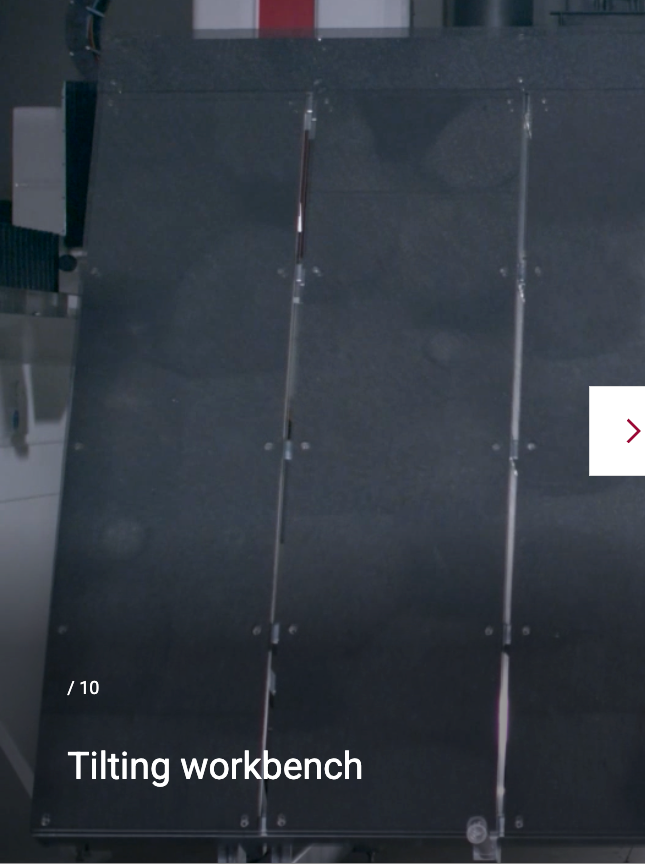

Tilting table that almost reaches the floor for safer slab loading/unloading operations. The rubber faced work table increases grip of the slab during machining operations.
