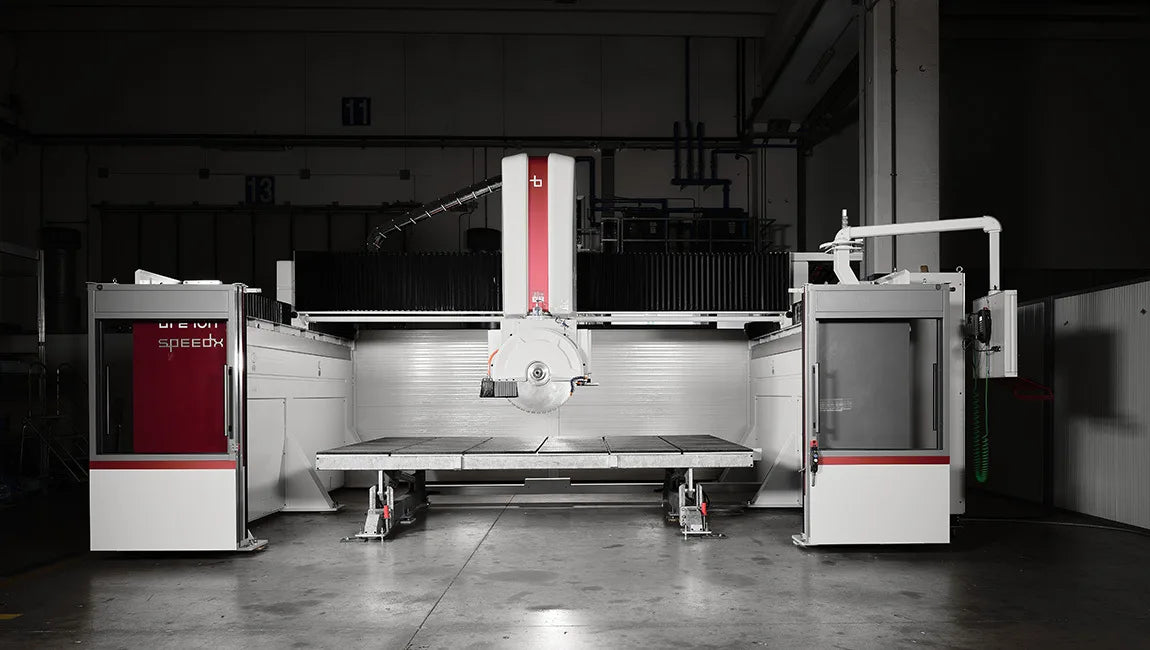

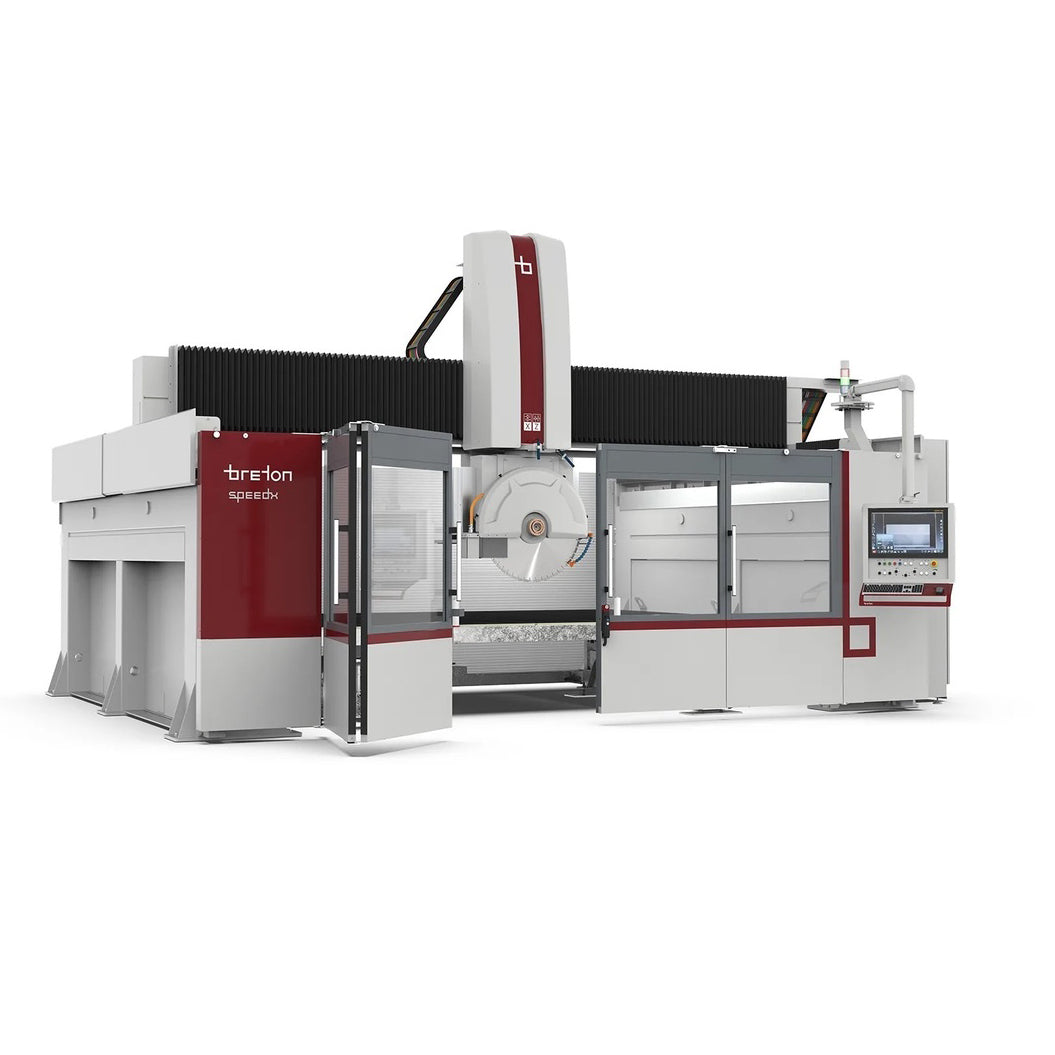

Breton SpeedX
5-axis disc-type cutting centre for high thickness slabs and workpieces
A design developed for robustness and flexibility that exploits the exceptional power and torque available to the full, with Breton's hallmark high mechanical and electronic reliability. All unique features of SpeedX.
Suitable for all work processes, from cutting of high thickness components for building, urban design and funerary art, to creation of kitchen tops, vanity tops, shower trays, various vertical claddings, drilling and shaping.
The various SpeedX models differ according to the Z axis stroke and consequently to the diameter of compatible discs.
SpeedX can be equipped with discs from 400 mm to 1400 mm for execution of right-angle cuts up to 750 mm in depth.

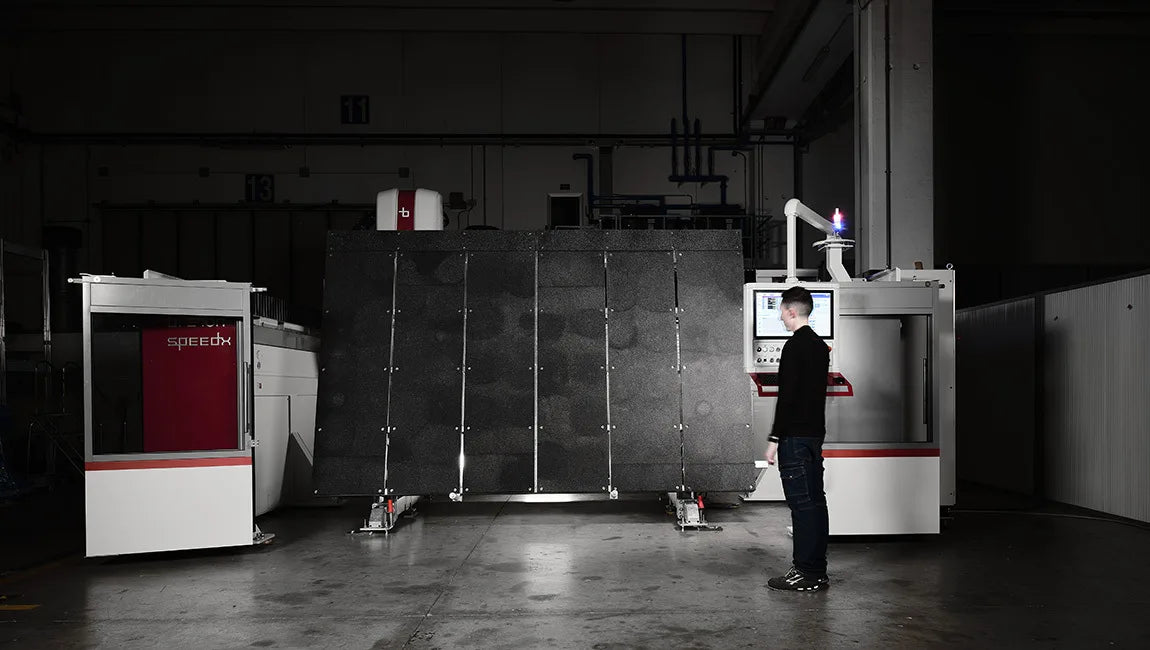

The tilting table, spindle vacuum cups, bridge camera, and touch probe make operations of loading/unloading, set up and handling of cut pieces far faster and safer, reducing material wastage and idle times. All this affects productivity so, thanks to SpeedX, you can process more pieces in the same time, thus increasing revenues.
SpeedX stands out also due to its high reliability. All mechanical and electronic components are top quality, while assembly operations are carried out by Breton's expert technicians, all factors that guarantee long product life with a greatly reduced number of problems.
Couldn't load pickup availability
Specifications
Specifications
SPEEDX 1000
Dimensions of the worktop (length): 3800 mm
Dimensions of the worktop (width): 2400 mm
Min. saw blade diameter: 400 mm
Max. saw blade diameter: 1000 mm
Max. cutting thickness: 350 mm
"X" axis travel: 3800 mm
"X" axis max. displacement speed: 40000 mm/min
"Y" axis travel: 3400 mm
"Y" axis max. displacement speed: 40000 mm/min
"Z" axis travel: 700 mm
"Z" axis max. displacement speed: 10000 mm/min
"C" axis rotation: 380°
"A" axis rotation: 0 - 90°
Spindle motor power (in S1 duty): 24 kW
Spindle motor power (in S6 duty): 30 kW
Mass: 6500 kg
Overall dimensions (length): 5700 mm
Overall dimensions (width): 7600 mm
Overall dimensions (height): 4000 mm
SPEEDX 1200
Dimensions of the worktop (length): 3800 mm
Dimensions of the worktop (width): 2400 mm
Min. saw blade diameter: 400 mm
Max. saw blade diameter: 1200 mm
Max. cutting thickness: 450 mm
"X" axis travel: 3800 mm
"X" axis max. displacement speed: 40000 mm/min
"Y" axis travel: 3400 mm
"Y" axis max. displacement speed: 40000 mm/min
"Z" axis travel: 1100 mm
"Z" axis max. displacement speed: 10000 mm/min
"C" axis rotation: 380°
"A" axis rotation: 0 - 90°
Spindle motor power (in S1 duty): 28 kW
Spindle motor power (in S6 duty): 34 kW
Mass: 6000 kg
Overall dimensions (length): 5600 mm
Overall dimensions (width): 7000 mm
Overall dimensions (height): 5000 mm
SPEEDX 1400
Dimensions of the worktop (length): 3800 mm
Dimensions of the worktop (width): 2400 mm
Min. saw blade diameter: 600 mm
Max. saw blade diameter: 1400 mm
Max. cutting thickness: 500 mm
"X" axis travel: 4300 mm
"X" axis max. displacement speed: 40000 mm/min
"Y" axis travel: 3500 mm
"Y" axis max. displacement speed: 40000 mm/min
"Z" axis travel: 1600 mm
"Z" axis max. displacement speed: 10000 mm/min
"C" axis rotation: 380°
"A" axis rotation: 0 - 90°
Spindle motor power (in S1 duty): 30 kW
Spindle motor power (in S6 duty): 36 kW
Mass: 11000 kg
Overall dimensions (length): 5600 mm
Overall dimensions (width): 7800 mm
Overall dimensions (height): 5800 mm
Materials
Materials
Compound stone Marble Granite Ceramic Quartzite
Step into the world of precision with our Breton CNC Saws & Work Centres
A hallmark of quality in the stone industry. Our product range is designed to meet the needs of both intricate design work and high-volume production, ensuring that no matter the scope of your project, you have the right machinery at your disposal. Breton's reputation for durability and advanced technology is unmatched, offering you the very best build quality in today's market. Explore our selection and find out how these state-of-the-art machines can become the cornerstone of your operation, boosting efficiency and quality in every cut you make.
Take A Closer Look

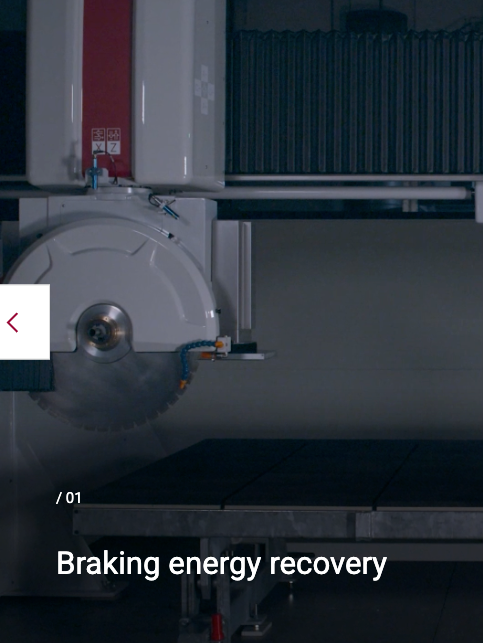

Energy Management function for savings in energy usage. Returns the energy recovered during braking to the power grid and/or supplies the energy generated by a motor during braking to another motor during acceleration.

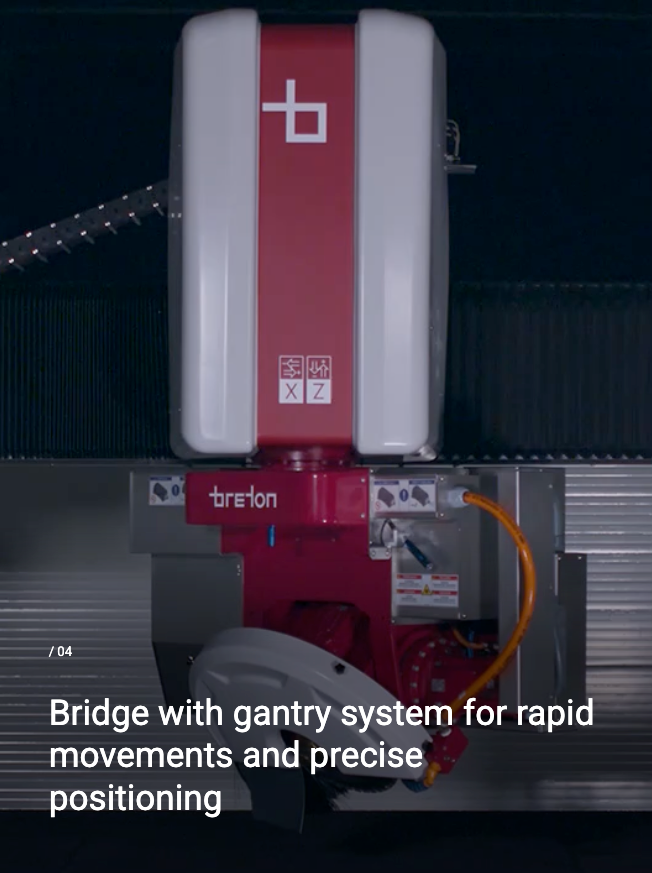

The bridge is moved by a rack and pinion gantry system driven by Siemens brushless motors of the latest generation in order to guarantee rapid and high precision movements.

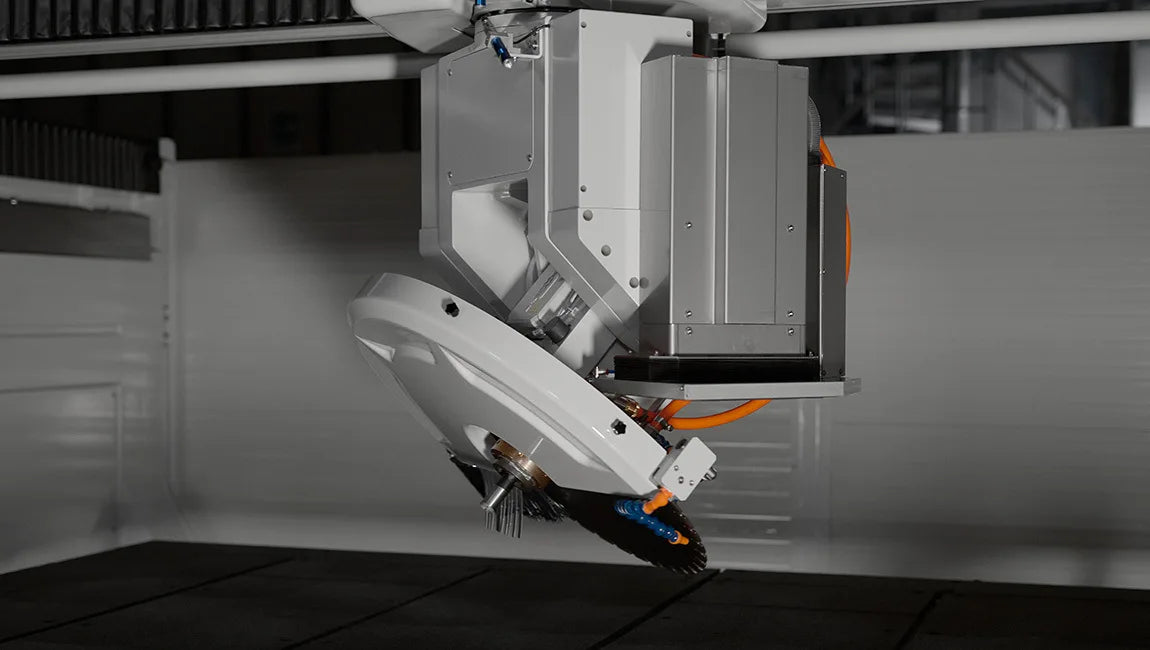

This spindle is equipped with a patented rotary union mechanism that makes it possible to replace quickly a cutting disc with a 1/2 GAS motor spindle. Allows speeds of up 6000 rpm with 1/2 GAS tools to enable machining with tangential force. Due to the high spindle power, a sensor checks to presence of the cutting disc in order to adapt the power output based on the specific tool installed at the time.

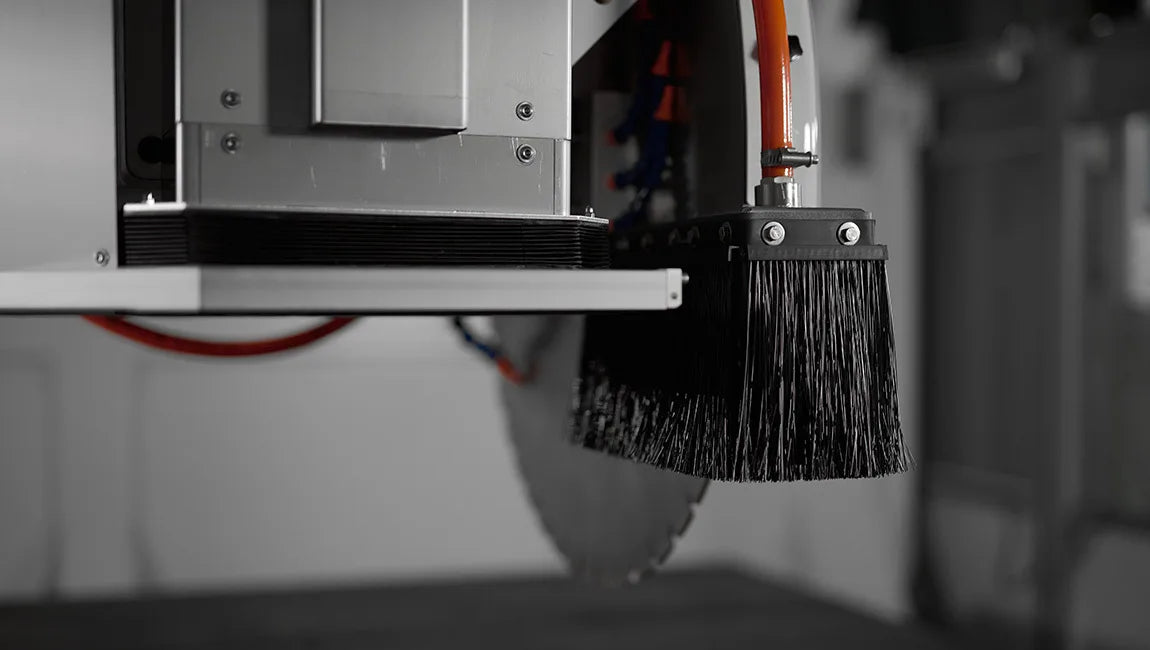

A vacuum lifter can be installed on the spindle to handle slabs and workpieces safely and rapidly between one cut and the next. The system can lift up to 500 kg when all the vacuum cups are gripping. The presence of this system limits the maximum installable disc diameter to 600 mm.
Robust hot galvanised steel work table with a plywood strip top; on request, the machine can be supplied in a version with a composite plastic work table. The tilting table facilitates slab loading, reducing falling risks and increasing the operator's safety.

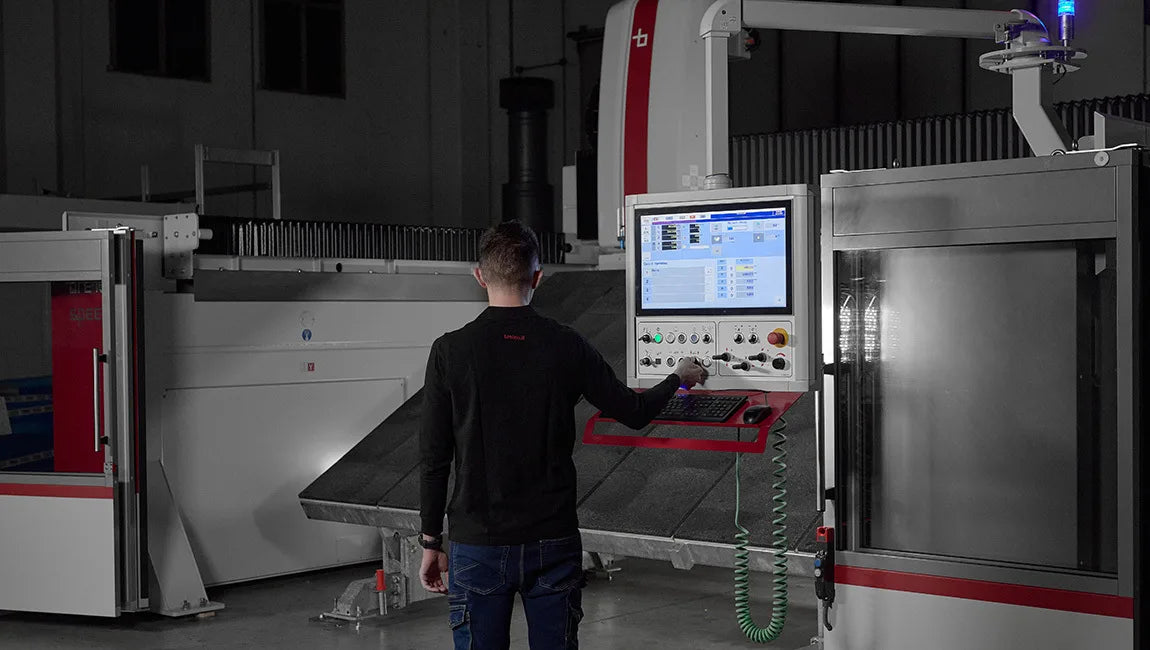

The adjustable console equipped with a Siemens terminal with a 24" multi-touch screen and keyboard-mouse surface allows the operator to program the machine easily and quickly. The intuitive Breton Sphera HMI exploits the full potential and widespread compatibility of Windows 10.
In addition to the power of the system, the use of Siemens components means being able to rely on ongoing system developments and updates plus the constant availability of spare parts, anywhere in the world.

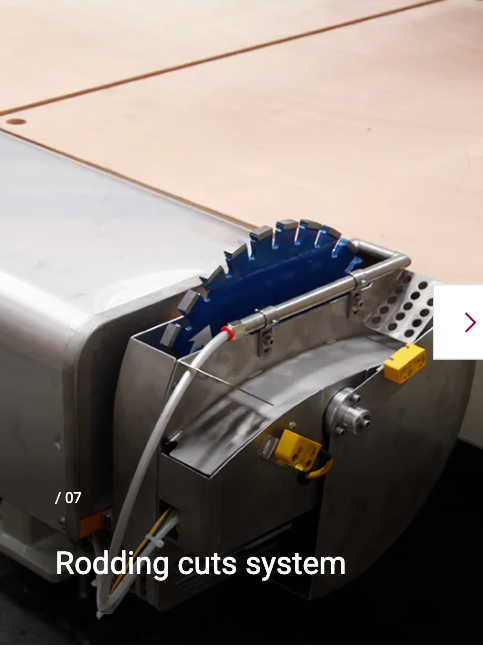

This system, available on request, allows the execution of rodding cuts on the slab underside to avoid sudden breaks when making cuts very close to the edge. The system can be installed on a specific floor standing support alongside the work table and it is equipped with a 400 mm diameter disc and a 7.5 kW motor.
