Breton Luxor Matic
Single head NC stone slab polishing machine with automatic head change

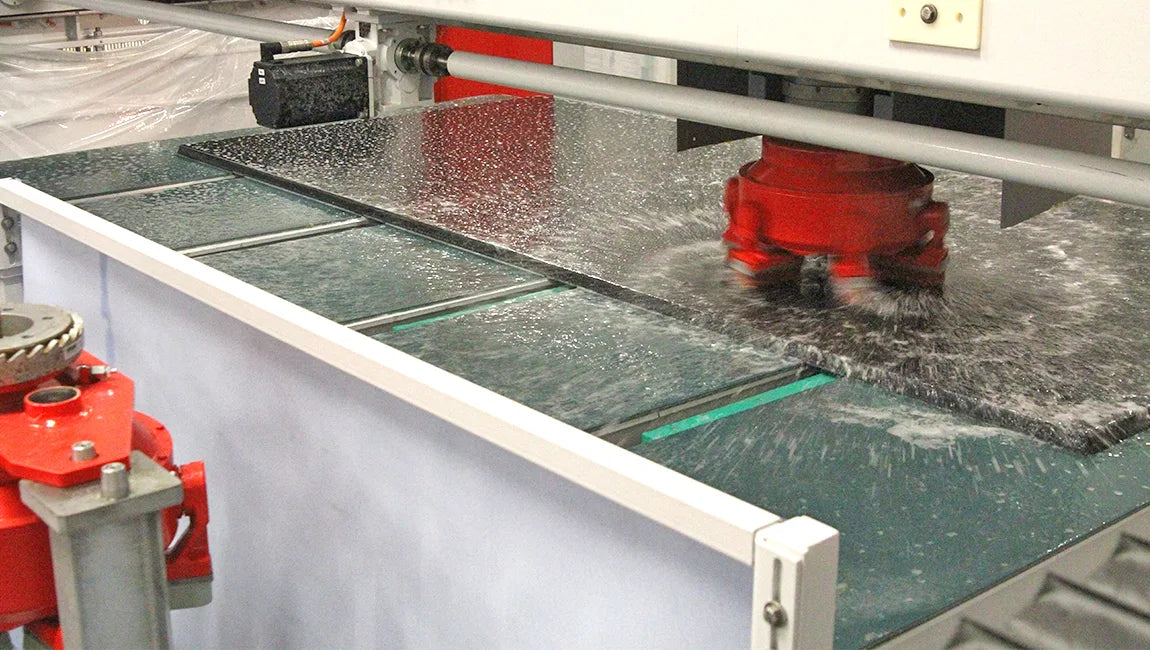

Polishing machine with single head on mobile beam for marble, granite, engineered stone or ceramic slabs.
This solution is characterised by ease of programming and automatic management of the work cycle without operator intervention.

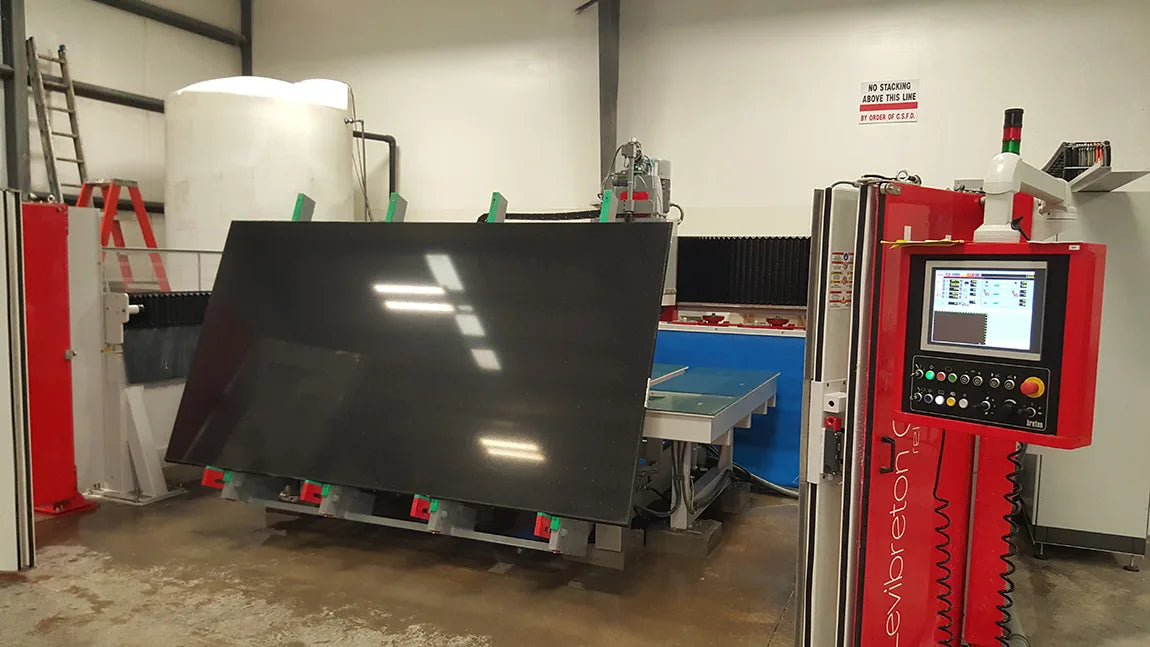

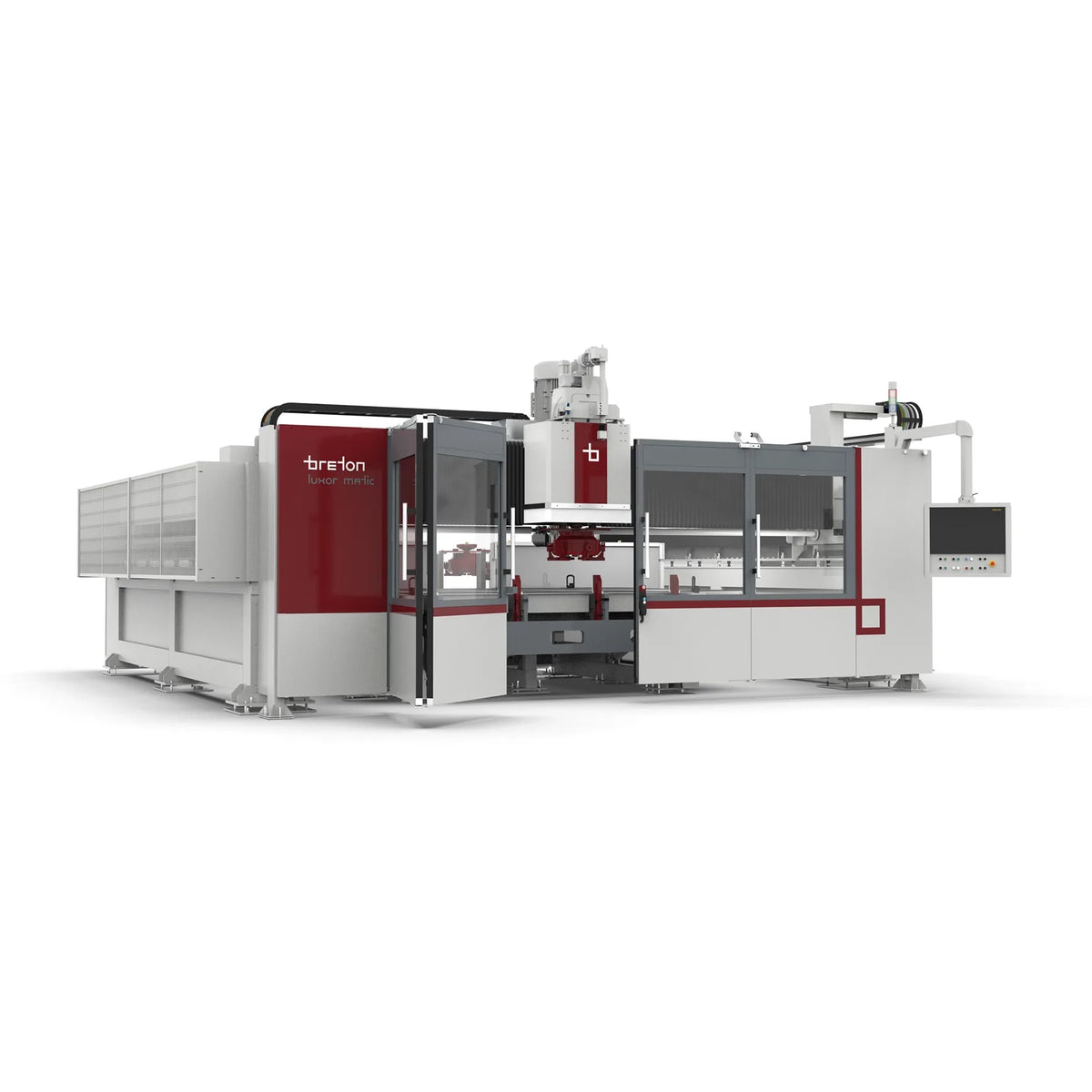

The Breton Luxor Matic is the single head polishing machine for stone materials with an automatic head changing system.
This solution is characterised by ease of programming and automatic management of the work cycle without operator intervention.

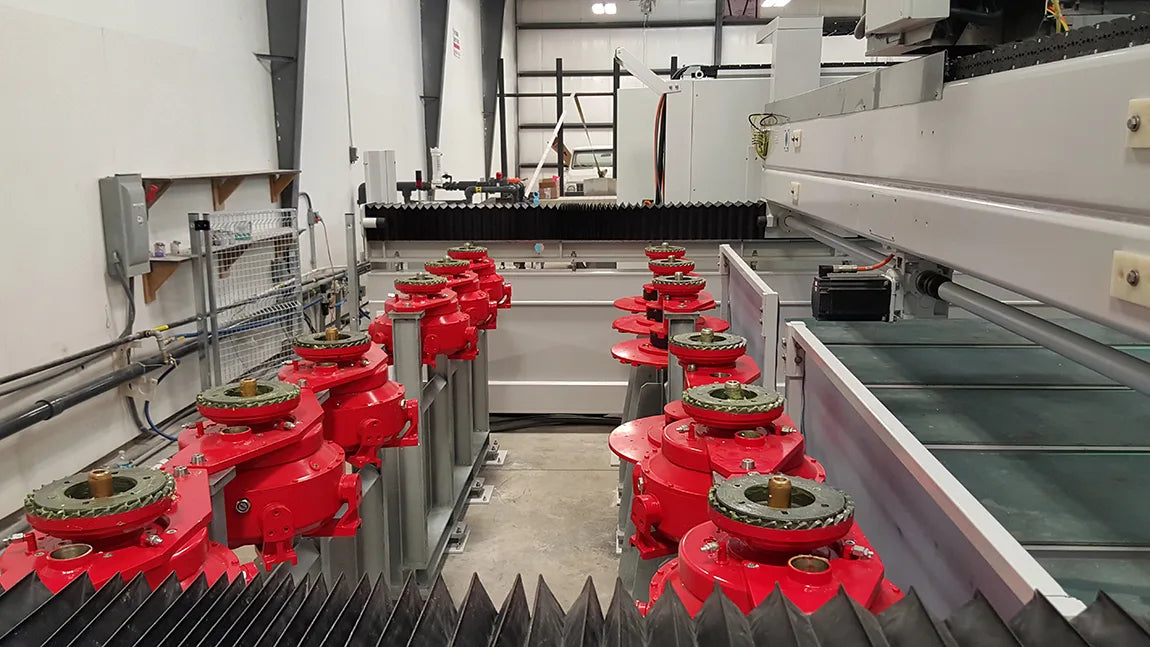

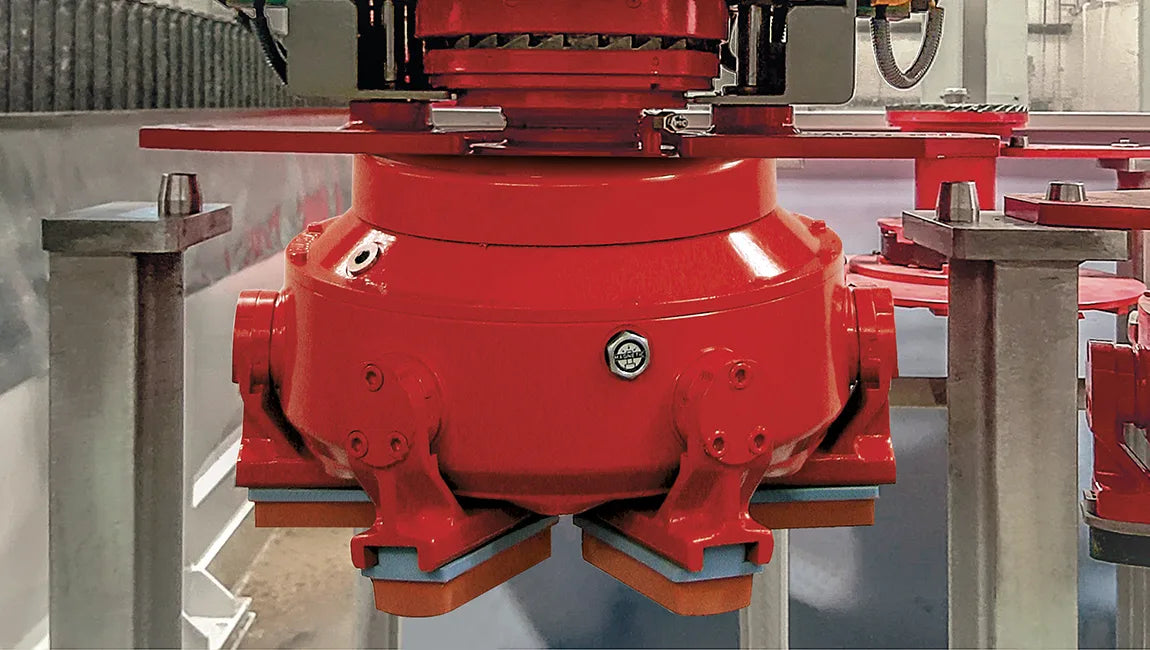

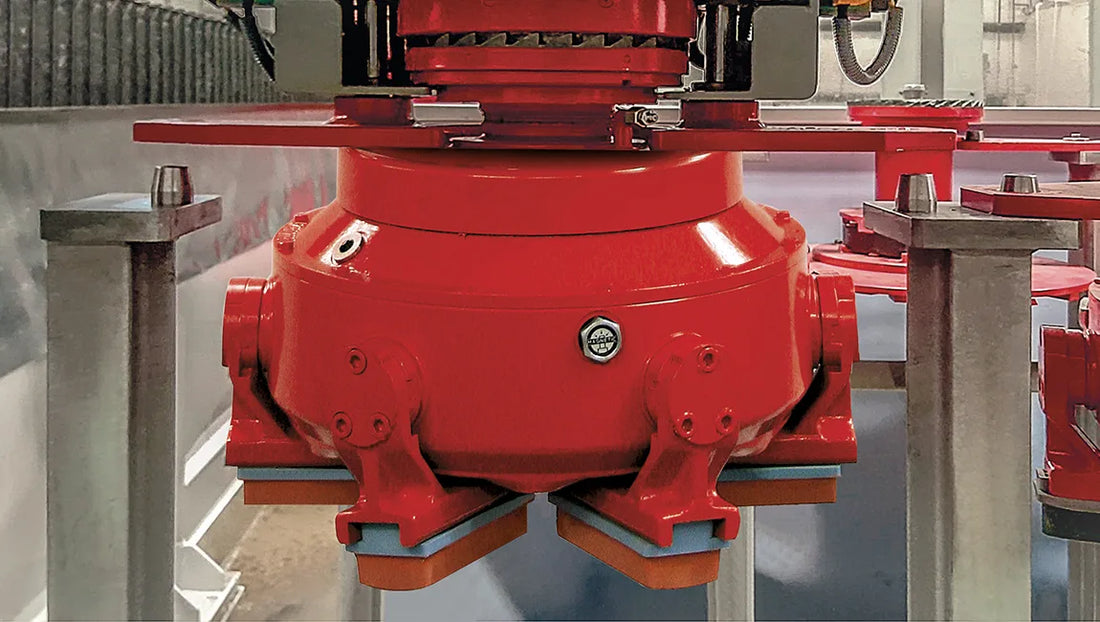

The head store has 12 positions, and it can be equipped with heads with oscillating shoes for granite or Frankfurt plates for marble. Each operating head is equipped with a rugged and reliable magnetic coupling. Breton Luxor Matic is also available with a tilting work table.
All aspects and components of Breton Luxor Matic are assessed in terms of performance, durability, and reliability in the harsh conditions typical of the stone working industry.
Couldn't load pickup availability
Specifications
Specifications
Peak of compressed air consumption: 30 Nl/min
Absorbed Power: 18 kW
Motor power of the dressing/polishing spindle: 15 kW
"X" axis min. displacement speed: 0 mm/min
"X" axis max. displacement speed: 32000 mm/min
"Y" axis min. displacement speed: 0 mm/min
"Y" axis max. displacement speed: 32000 mm/min
Max. workable length: 3500 mm
Max. workable width: 2200 mm
Max. workable thickness: 115 mm
Mass: 6800 kg
Overall dimensions (length): 6600 mm
Overall dimensions (width): 7200 mm
Overall dimensions (height): 2700 mm
Materials
Materials
Marble Granite Ceramic
