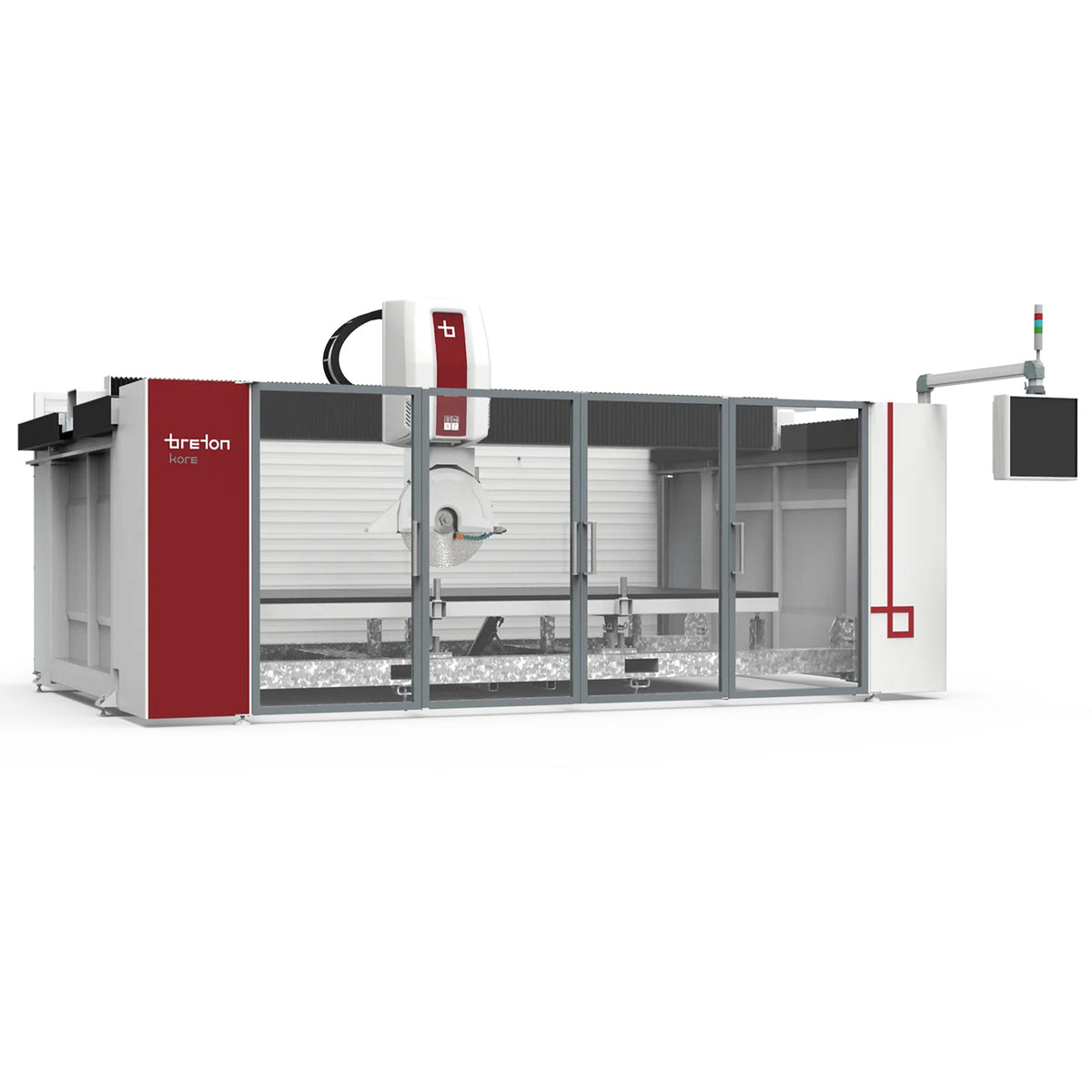

Breton Kore
The Breton Kore is a compact 5-axis monobloc CNC bridge saw designed to bring Breton technology to workshops looking for an accessible, intuitive and versatile stone-processing solution.
Designed particularly for small and medium-sized workshops, Kore combines a compact footprint with continuous 5-axis CNC control for processing marble, granite, quartz, ceramic and terrazzo.
5-Axis CNC Processing
Kore features continuous 5-axis CNC control, with interpolation across the X, Y and Z axes and optimised tool paths.
This provides the flexibility to carry out a range of operations including cutting, milling, contouring, drilling and shaping, making Kore suitable for everyday worktop fabrication and other stone-processing applications.
Compact Monobloc Design
The monobloc structure integrates the machine shoulders, worktable and lower crossbeams into a single robust configuration.
Its compact design makes Kore particularly suited to workshops where space is important, while the integrated structure has been developed to simplify installation and provide consistent machine precision.
Precise Machine Movement
Digital brushless motors, ground guides and recirculating ball systems provide smooth and controlled movement across the machine's main axes.
The spindle features inverter control for managing machining speed, together with a front ½" gas connection for tooling such as core drills and finger bits. Internal water flow through the spindle shaft provides cooling to the tool during processing.
Intuitive Operator Control
Kore features an 18.5" widescreen touch monitor with joysticks for direct machine control.
The operator interface includes guided controls, essential CAD/CAM functions and AI-powered quick commands designed to simplify programming and everyday machine operation.
Built for Everyday Fabrication
From kitchen and vanity tops to cladding and other fabricated components, Breton Kore provides workshops with a compact route into 5-axis CNC processing.
Combining a smaller footprint, versatile processing capabilities and an intuitive control system, Kore brings Breton's established CNC technology into a practical solution designed around the requirements of everyday fabrication.
Couldn't load pickup availability
Specifications
Specifications
Kore
Dimensions of the worktop (width): 2100 mm
Dimensions of the worktop (length): 3600 mm
Min. saw blade diameter: 350 mm
Max. saw blade diameter: 600 mm
Max. cutting thickness (with Ø 600 mm saw blade): 150 mm
"X" axis travel: 3740 mm
"X" axis max. displacement speed: 25000 mm/min
"Y" axis travel: 2240 mm
"Y" axis max. displacement speed: 25000 mm/min
"Z" axis travel: 310 mm
"Z" axis max. displacement speed: 6000 mm/min
"C" axis rotation: 0
"A" axis rotation: 0 - 90°
Spindle motor power (in S1 duty): 15 kW
Spindle motor power (in S6 duty): 18 kW
Mass: 0
Overall dimensions (length): 4200 mm
Overall dimensions (width): 5600 mm
Overall dimensions (height): 2700 mm
Kore Plus
Dimensions of the worktop (width): 2400 mm
Dimensions of the worktop (length): 3800 mm
Min. saw blade diameter: 350 mm
Max. saw blade diameter: 600 mm
Max. cutting thickness (with Ø 600 mm saw blade): 150 mm
"X" axis travel: 3940 mm
"X" axis max. displacement speed: 25000 mm/min
"Y" axis travel: 2540 mm
"Y" axis max. displacement speed: 25000 mm/min
"Z" axis travel: 310 mm
"Z" axis max. displacement speed: 6000 mm/min
"C" axis rotation: 0
"A" axis rotation: 0 - 90°
Spindle motor power (in S1 duty): 15 kW
Spindle motor power (in S6 duty): 18 kW
Mass: 5800 kg
Overall dimensions (length): 4300 mm
Overall dimensions (width): 5850 mm
Overall dimensions (height): 2700 mm
Materials
Materials
Marble, Granite, Ceramic, Compound Stone, Terrazzo
Step into the world of precision with our Breton CNC Saws & Work Centres
A hallmark of quality in the stone industry. Our product range is designed to meet the needs of both intricate design work and high-volume production, ensuring that no matter the scope of your project, you have the right machinery at your disposal. Breton's reputation for durability and advanced technology is unmatched, offering you the very best build quality in today's market. Explore our selection and find out how these state-of-the-art machines can become the cornerstone of your operation, boosting efficiency and quality in every cut you make.
Take A Closer Look
Breton Kore is equipped with continuous 5-axis CNC control, with interpolation of the X, Y and Z axes and optimized tool paths. This technology enables precise, versatile operations on marble, granite, quartz and ceramic.

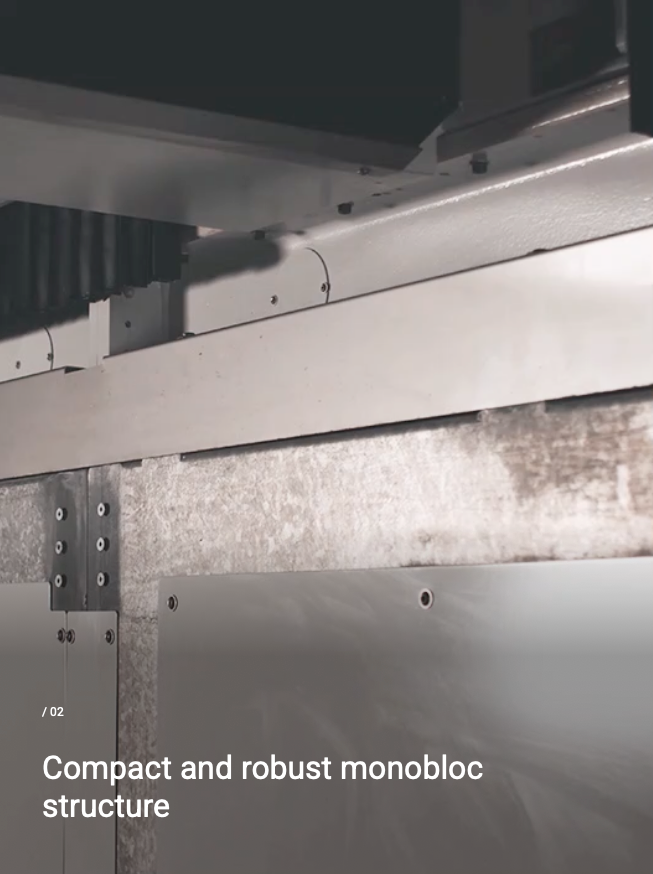

The monobloc structure integrates the shoulders, worktable and lower crossbeams into a solid, stable configuration. This ensures fast installation, long-term reliability and consistent precision, even in compact production spaces.

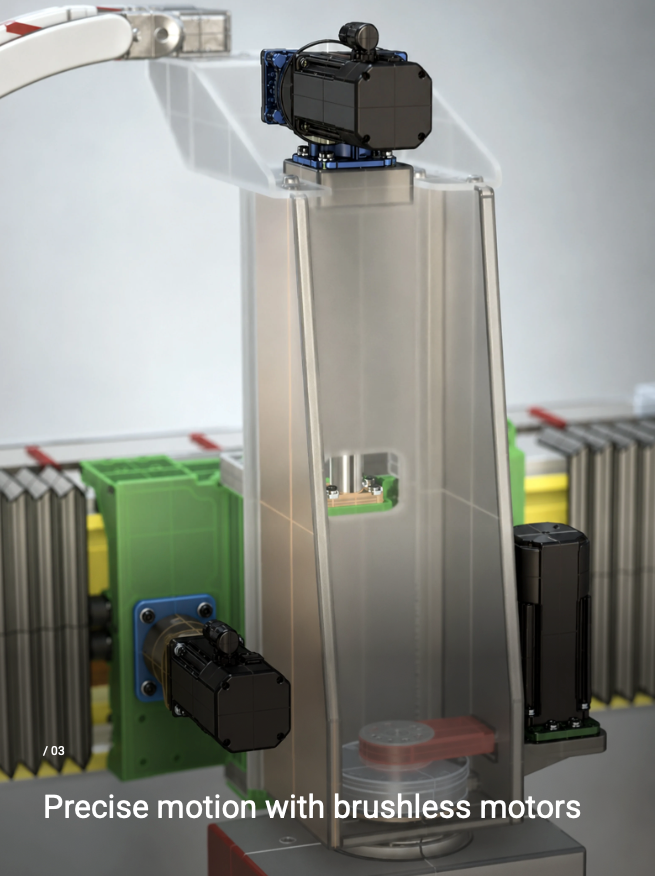

The machine uses digital brushless motors, ground guides and recirculating ball systems to ensure smooth, accurate movement along the main axes. The result is high, repeatable cutting quality in everyday production.

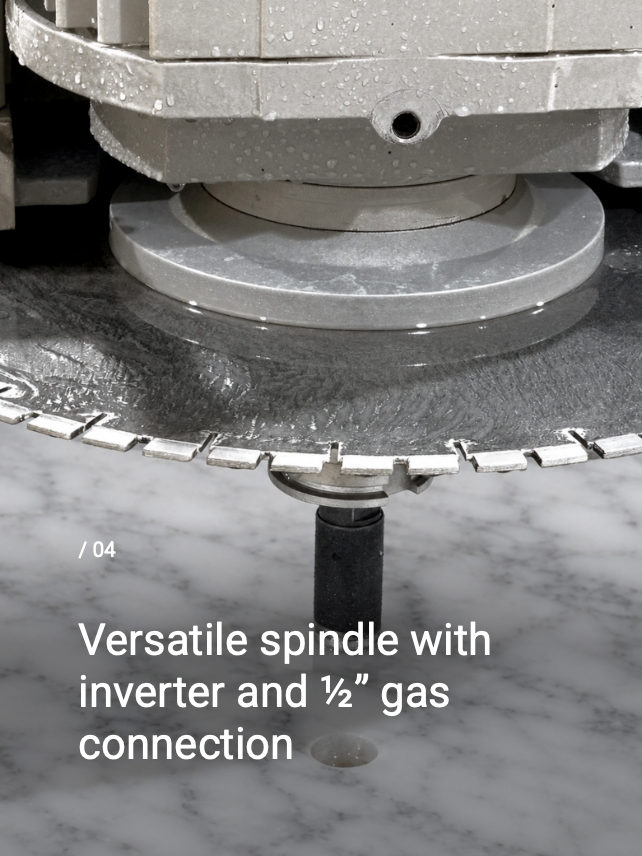

The spindle with inverter allows effective control of machining speed and is equipped with a front ½” gas connection for tools such as core drills or finger bits. Internal water flow through the spindle shaft helps cool the tool during cutting.
