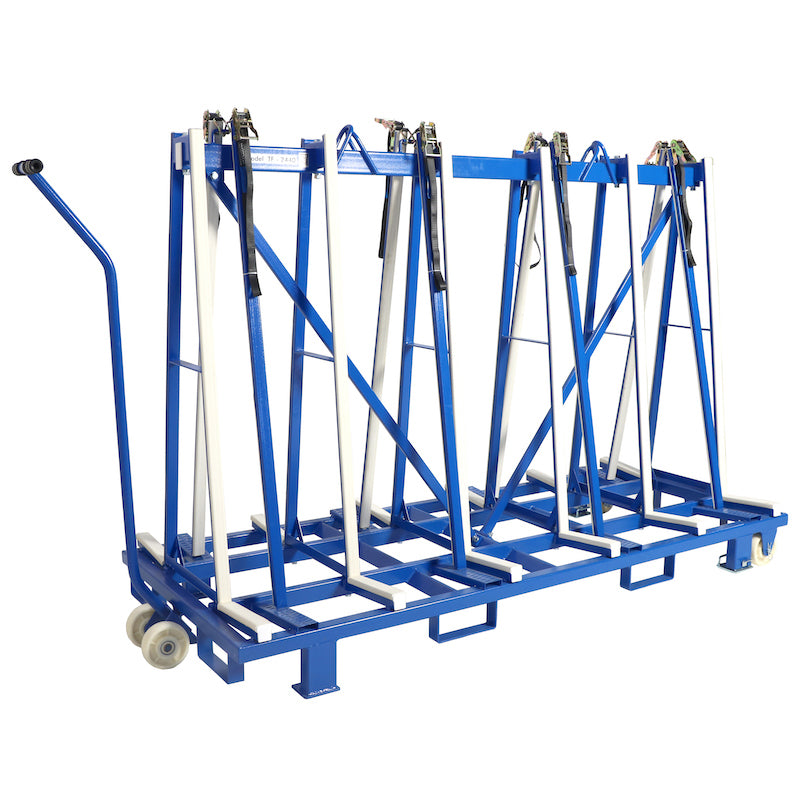

Aardwolf TF2440 - 2.4mtr Galvanized A-frame with Wheels
The Transport Frame is a heavy-duty frame to transport granite, marble, engineered stone, glass, and natural stone countertops. Designed for both storage and transport, it features a powder-coated steel structure (optional galvanized finish), locking bars with ratchet straps, and integrated forklift receivers for secure and efficient handling. With rubber-coated supports to prevent surface damage and adjustable support legs for stability, this transport frame is essential for stone fabricators, suppliers, and contractors.
Key Features of the TF2440 Transport Frame
• Heavy-Duty Steel Frame: Powder-coated for durability, with an optional galvanized finish.
• Secure Locking System: Locking bars and ratchet straps hold slabs firmly in place.
• Rubber-Coated Supports: Prevents scratches and surface damage.
• Forklift-Compatible Design: Built-in receivers for easy lifting and transport.
• Adjustable Support Legs: Improves stability during truck transport.
• Large Counter-Lever with Wheels: Allows manual movement when forklifts are unavailable.
• High Load Capacity: Supports up to 2500 kg (5511 lbs) for heavy slabs.
Specifications
|
Metric
|
Imperial
|
|
| Number of wheels | 4 pcs | 4 pcs |
| Number of straps | 8 pcs | 8 pcs |
| Width of slab storage base area on each side | 268 mm | 10.6" |
| Length | 2440 mm | 96" |
| Working load limit per side | 1250 kg | 2756 lb |
| Total working load limit on the wheels | 2500 kg | 5511 lb |
| Net weight of the total frame | 207 kg | 456 lb |
| Net weight of caster handle | 8.7 kg | 19 lb |
| Net weight of the frame without caster handle | 197.3 kg | 435 lb |
| Gross weight | 213 kg | 470 lb |
